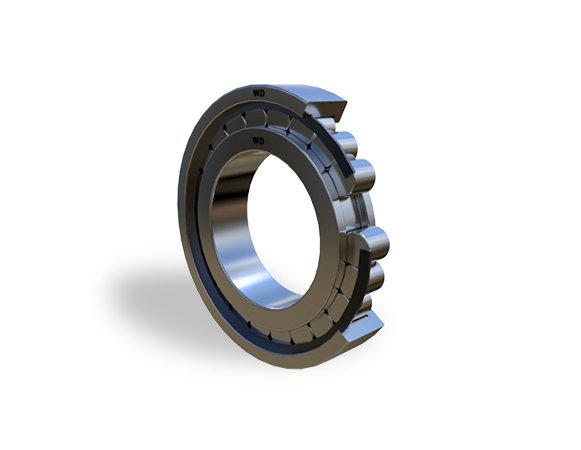

NJ/NCF-V Single Row Cylindrical Roller Bearings

Name: NJ/NCF-V Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-eac6ac
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-eac6ac

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

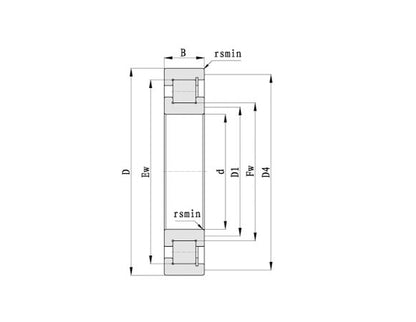

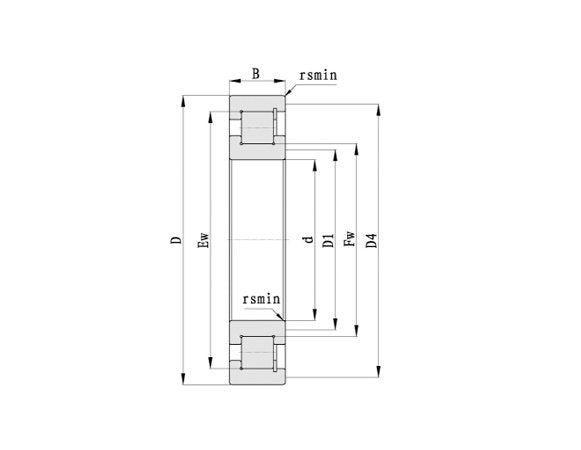

Dimensions Bore Diameter

340 mm

Dimensions Dimension E

430.5 mm

Dimensions Dimension F

366.5 mm

Dimensions Minimum Dimension Rs

3 mm

Dimensions Outside Diameter

460 mm

Dimensions Overall Bearing Width

72 mm

Load Rating Dynamic Cr Load Rating

1200 kN

Load Rating Static Cor Load Rating

2500 kN

Specifications Limiting Speed

500 rpm

Specifications Mass

35.1 kg

NJ/NCF-V Single Row Cylindrical Roller Bearings
