NJ/NCF-V Single Row Cylindrical Roller Bearings

Name: NJ/NCF-V Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-1dc82d
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-1dc82d

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

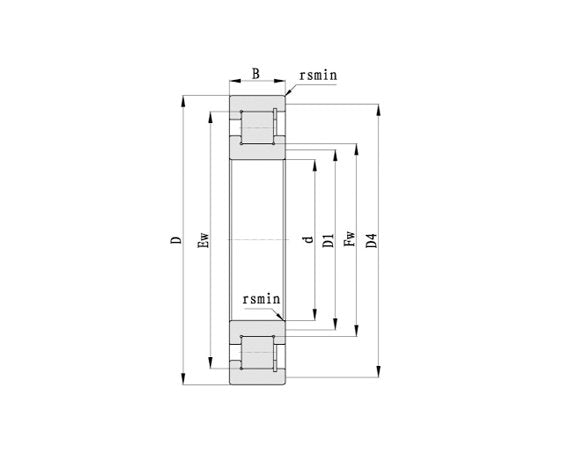

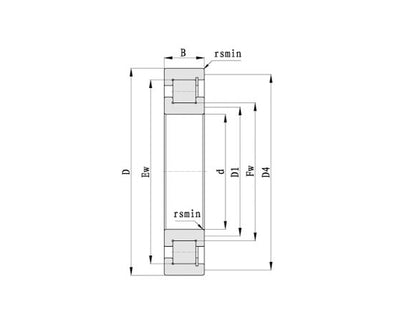

Product Specifications

Dimensions Bore Diameter

280 mm

Dimensions Dimension E

390.5 mm

Dimensions Dimension F

300.5 mm

Dimensions Minimum Dimension Rs

4 mm

Dimensions Outside Diameter

420 mm

Dimensions Overall Bearing Width

106 mm

Load Rating Dynamic Cr Load Rating

1630 kN

Load Rating Static Cor Load Rating

2750 kN

Specifications Limiting Speed

560 rpm

Specifications Mass

48.4 kg

NJ/NCF-V Single Row Cylindrical Roller Bearings
