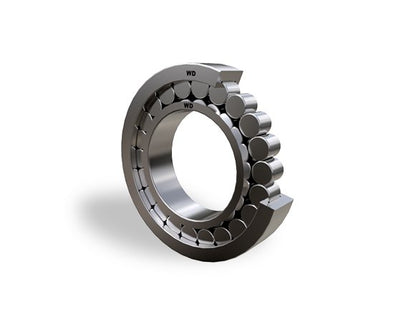

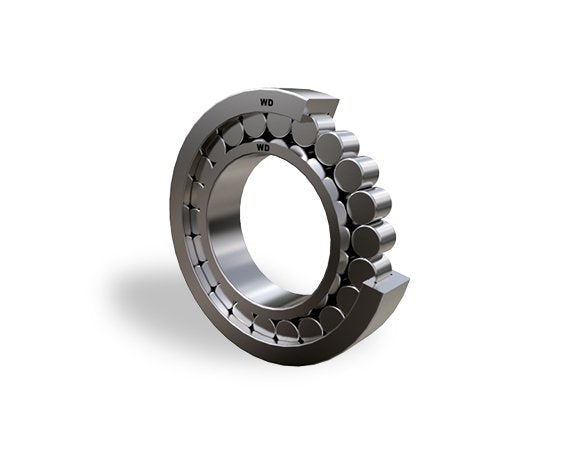

NJ/NCF-V Single Row Cylindrical Roller Bearings

Name: NJ/NCF-V Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-20e500
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-20e500

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

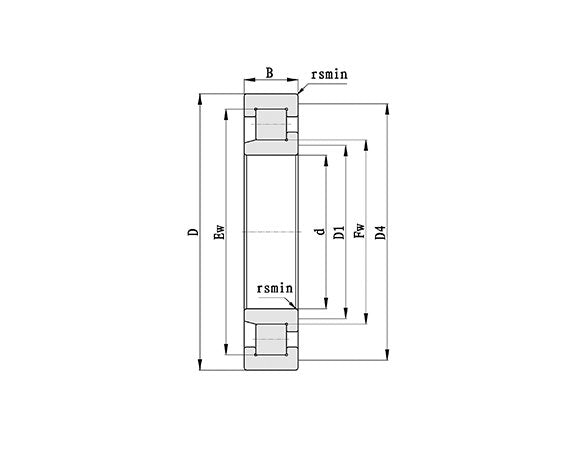

Product Specifications

Dimensions Bore Diameter

150 mm

Dimensions Dimension E

286.5 mm

Dimensions Dimension F

182.5 mm

Dimensions Minimum Dimension Rs

4 mm

Dimensions Outside Diameter

320 mm

Dimensions Overall Bearing Width

108 mm

Load Rating Dynamic Cr Load Rating

1500 kN

Load Rating Static Cor Load Rating

2000 kN

Specifications Limiting Speed

900 rpm

Specifications Mass

42.6 kg

NJ/NCF-V Single Row Cylindrical Roller Bearings
