NJ/NCF-V Single Row Cylindrical Roller Bearings

Name: NJ/NCF-V Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-61cecb
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-61cecb

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

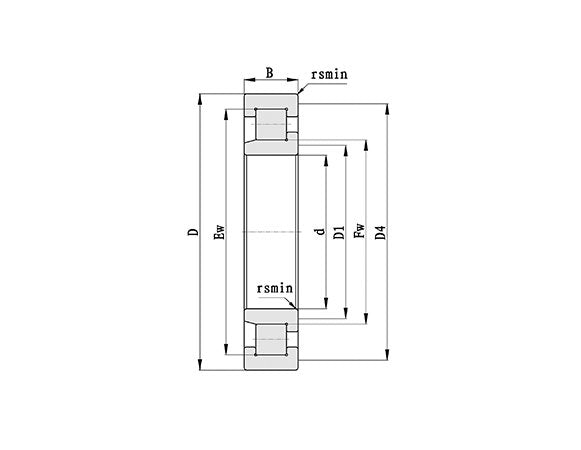

Dimensions Bore Diameter

220 mm

Dimensions Dimension E

407.6 mm

Dimensions Dimension F

267.6 mm

Dimensions Minimum Dimension Rs

5 mm

Dimensions Outside Diameter

460 mm

Dimensions Overall Bearing Width

145 mm

Load Rating Dynamic Cr Load Rating

2650 kN

Load Rating Static Cor Load Rating

3800 kN

Specifications Limiting Speed

600 rpm

Specifications Mass

117 kg

NJ/NCF-V Single Row Cylindrical Roller Bearings
