NJ/NCF-V Single Row Cylindrical Roller Bearings

Name: NJ/NCF-V Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-fc6b7b
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-fc6b7b

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

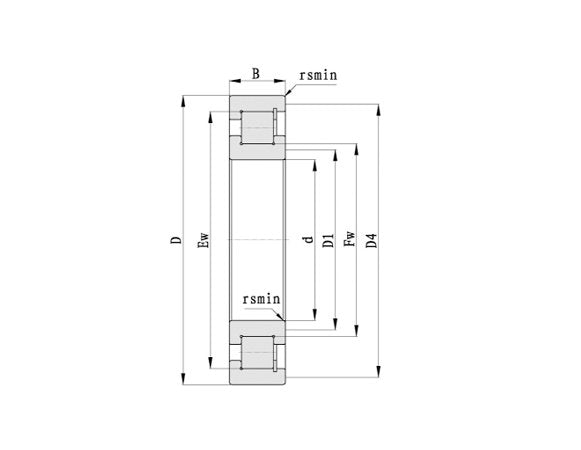

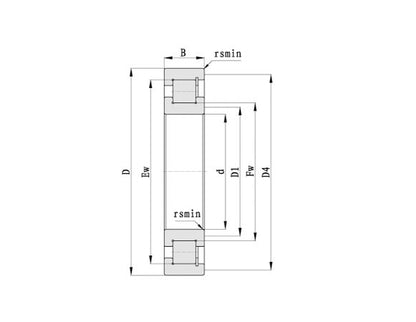

Product Specifications

Dimensions Bore Diameter

380 mm

Dimensions Dimension E

484.5 mm

Dimensions Dimension F

12.5 mm

Dimensions Minimum Dimension Rs

4 mm

Dimensions Outside Diameter

520 mm

Dimensions Overall Bearing Width

82 mm

Load Rating Dynamic Cr Load Rating

1460 kN

Load Rating Static Cor Load Rating

3100 kN

Specifications Limiting Speed

450 rpm

Specifications Mass

52.6 kg
