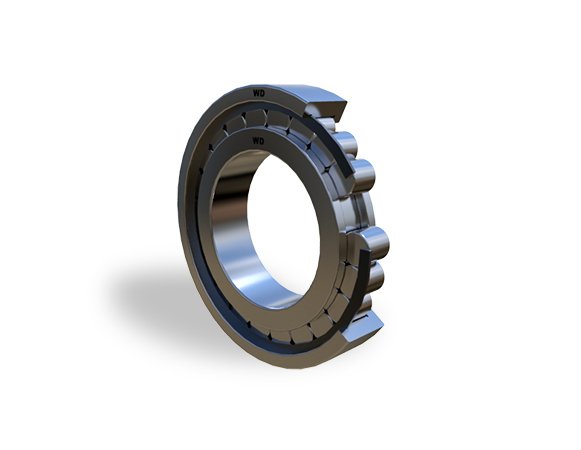

NJ/NCF-V Single Row Cylindrical Roller Bearings

Name: NJ/NCF-V Single Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-0b3c60
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-0b3c60

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

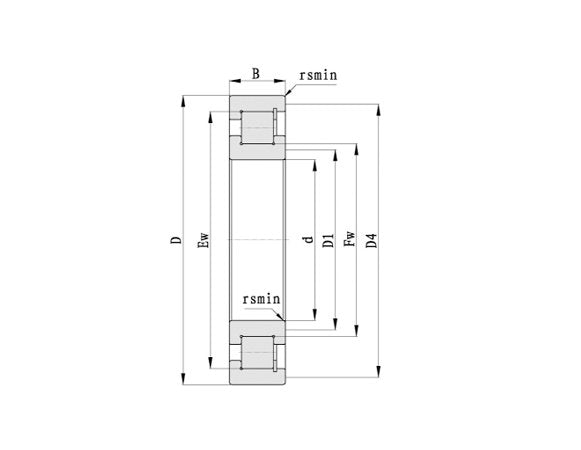

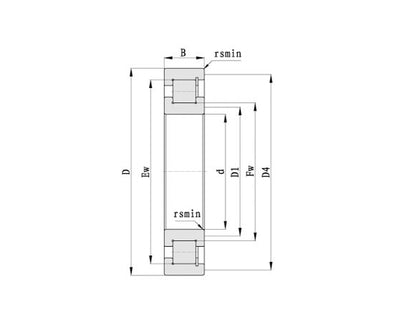

Product Specifications

Dimensions Bore Diameter

400 mm

Dimensions Dimension E

507.5 mm

Dimensions Dimension F

435.5 mm

Dimensions Minimum Dimension Rs

4 mm

Dimensions Outside Diameter

540 mm

Dimensions Overall Bearing Width

82 mm

Load Rating Dynamic Cr Load Rating

1500 kN

Load Rating Static Cor Load Rating

3250 kN

Specifications Limiting Speed

450 rpm

Specifications Mass

54.9 kg

NJ/NCF-V Single Row Cylindrical Roller Bearings
