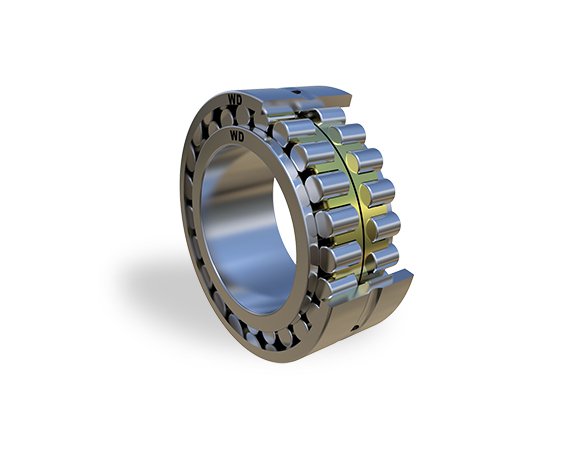

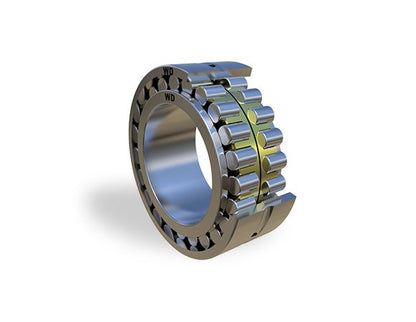

NN Double Row Cylindrical Roller Bearings

Name: NN Double Row Cylindrical Roller Bearings
Brand: WD Bearings
SKU: CYL-30acae
Price: 49.99 USD
Availability: OutOfStock

SKU:CYL-30acae

N/A

$49.99

Sale

Quantity

Expect your order to arrive on time.

All orders are processed through a secure, PCI-compliant checkout.

View full details

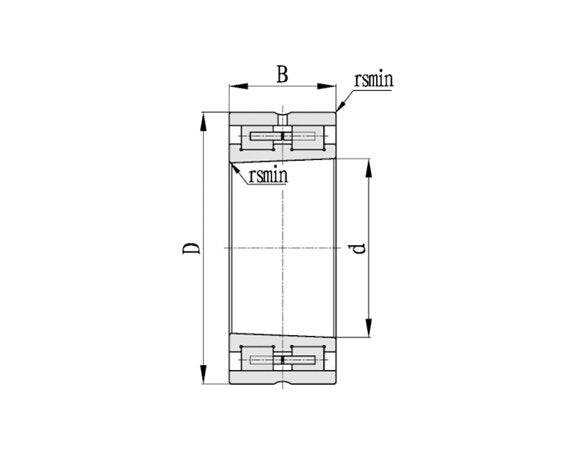

Product Specifications

Dimensions Bore Diameter

105 mm

Dimensions Dimension E

146 mm

Dimensions Minimum Dimension Rs

2 mm

Dimensions Outside Diameter

160 mm

Dimensions Overall Bearing Width

41 mm

Limiting Speed Grease Limiting Speed

4800 rpm

Limiting Speed Oil Limiting Speed

5600 rpm

Load Rating Dynamic Cr Load Rating

190 kN

Load Rating Static Cor Load Rating

310 kN

Specifications Mass

2.84 kg
