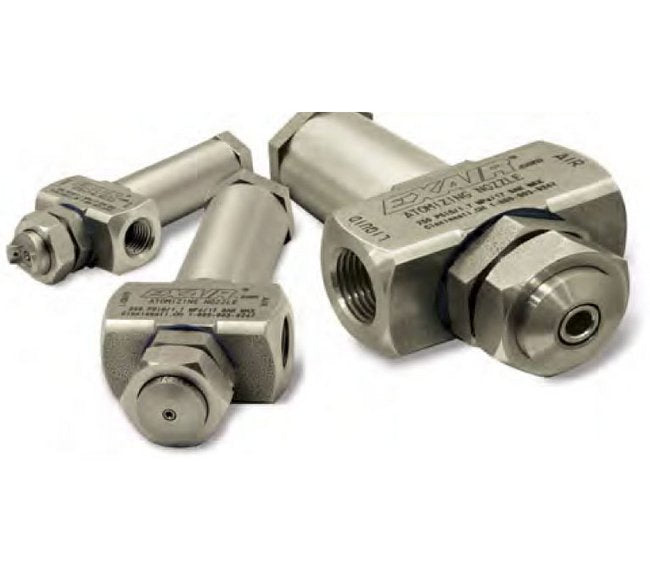

No Drip External Mix Atomizing Spray Nozzle - 1/4 NPT Narrow Angle Flat Fan Pattern
No Drip External Mix Atomizing Spray Nozzle - 1/4 NPT Narrow Angle Flat Fan Pattern
SKU:NOD-ec63a7
EXAIR EF2020SS No Drip External Mix Atomizing Spray Nozzle for precise, drip-free atomization in various applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
No Drip External Mix Atomizing Spray Nozzle - 1/4 NPT Narrow Angle Flat Fan Pattern
$79.99
Quantity: 1
Claim Your Seller Account
No Drip External Mix Atomizing Spray Nozzle - 1/4 NPT Narrow Angle Flat Fan Pattern
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The EF2020SS 1/4 NPT No Drip External Mix Atomizing Spray Nozzle by EXAIR offers precise liquid flow control with a unique feature to stop liquid flow when compressed air is shut off. Constructed with durable stainless steel, this nozzle provides fine atomization for various applications like coating, cooling, painting, and more. Its compact design, fully adjustable settings, and interchangeable caps make it versatile and efficient, minimizing air and liquid consumption while preventing post-spray drips. Ideal for pressure-fed systems requiring independent air and liquid controls, this nozzle meets high standards of durability and performance.
Product Specifications
Specifications Additional Information
External Mix : External mix nozzles have the highest flow rates and allow the air and liquid flows to be adjusted independently. These nozzles are best where precise liquid flow is needed. External mix nozzles can be used on liquids with a viscosity above 300 cP. Both air and liquid sides are pressure fed. No Drip External Mix Atomizing Nozzles are for pressure fed applications with independent air and liquid control.
Specifications Advantages
All Stainless Steel Construction | Compact | Easily used with an EFC | Fine Atomization | Fully Adjustable | Interchangeable Liquid and Air Caps | Minimizes Air and Liquid Consumption | No Post Spray Drip
Specifications Applications
Coating | Cooling | Dust Control | Humidification | Painting | Quenching | Rinsing | Wetting (Moistening)
Specifications Connection Type
1/4 National Pipe Thread (NPT)
Specifications Flow Rate
7.5 gal/h | 28.4 L/h
Specifications Maximum Spray Angle
70
Specifications Minimum Spray Angle
35
Specifications Mixing Type
No Drip External Mix
Specifications Spray Pattern
Narrow Angle Flat Fan Pattern
