No Drip External Mix Atomizing Spray Nozzle - EF2010SS

Name: No Drip External Mix Atomizing Spray Nozzle - EF2010SS
Brand: Exair LLC
SKU: NOD-ae1de2
Price: 59.99 USD
Availability: OutOfStock

SKU:NOD-ae1de2

Enhance precision with the EF2010SS No Drip External Mix Atomizing Spray Nozzle. Ideal for coating, cooling, and more.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

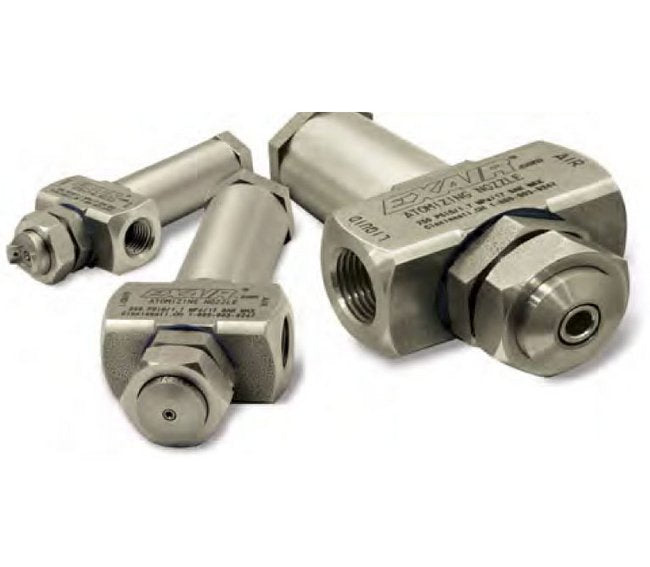

The EF2010SS 1/4 NPT No Drip External Mix Narrow Angle Flat Fan Pattern Atomizing Spray Nozzle by EXAIR is a breakthrough innovation designed for precise liquid flow control in pressure-fed applications. Constructed with durable stainless steel, this nozzle offers a wide range of spray angles, from 35 to 70 degrees, making it ideal for various applications such as coating, cooling, painting, and more. With features like fully adjustable settings, interchangeable caps, and minimal air and liquid consumption, this nozzle ensures fine atomization and eliminates post-spray drips, enhancing efficiency and performance.

Product Specifications

Specifications Additional Information

External Mix : External mix nozzles have the highest flow rates and allow the air and liquid flows to be adjusted independently. These nozzles are best where precise liquid flow is needed. External mix nozzles can be used on liquids with a viscosity above 300 cP. Both air and liquid sides are pressure fed. No Drip External Mix Atomizing Nozzles are for pressure fed applications with independent air and liquid control.

Specifications Advantages

Specifications Applications

Specifications Connection Type

1/4 National Pipe Thread (NPT)

Specifications Flow Rate

3.8 gal/h | 14.4 L/h

Specifications Maximum Spray Angle

Specifications Minimum Spray Angle

Specifications Mixing Type

No Drip External Mix

Specifications Spray Pattern

Narrow Angle Flat Fan Pattern

No Drip External Mix Atomizing Spray Nozzle - EF2010SS
