NOMAD® 1" Polypropylene Pwr-Flo™ AODD Pump with Viton®/FKM Diaphragm
NOMAD® 1" Polypropylene Pwr-Flo™ AODD Pump with Viton®/FKM Diaphragm
SKU:MAN-f6b377
Efficient and reliable NOMAD® 1" Polypropylene Pwr-Flo™ AODD Pump for industrial applications.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
NOMAD® 1" Polypropylene Pwr-Flo™ AODD Pump with Viton®/FKM Diaphragm
$1,299.99
Quantity: 1
Claim Your Seller Account
NOMAD® 1" Polypropylene Pwr-Flo™ AODD Pump with Viton®/FKM Diaphragm
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

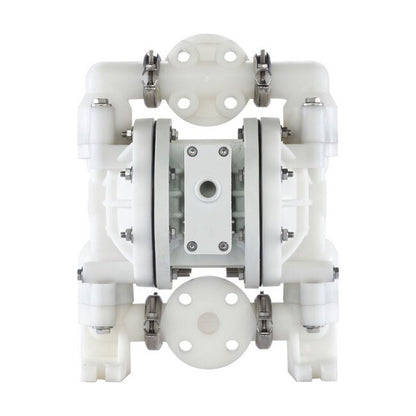

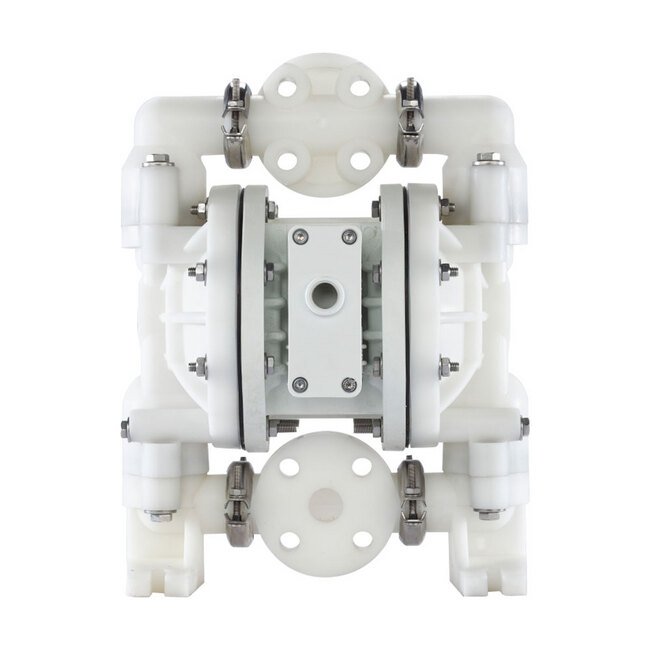

The NOMAD® 1" Polypropylene Pwr-Flo™ AODD Pump with Viton®/FKM Diaphragm is a reliable solution for industrial pumping needs. Designed as a drop-in replacement for Wilden® AODD pumps, this air-driven double diaphragm pump excels in handling large solids and slurries. The PWR-FLO™ asymmetrical spool design ensures efficient air system operation with anti-stalling features, making it ideal for on/off liquid transfer tasks such as filling and batching applications. Crafted with chemically resistant polypropylene and featuring a Viton®/FKM diaphragm, this pump offers robust performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

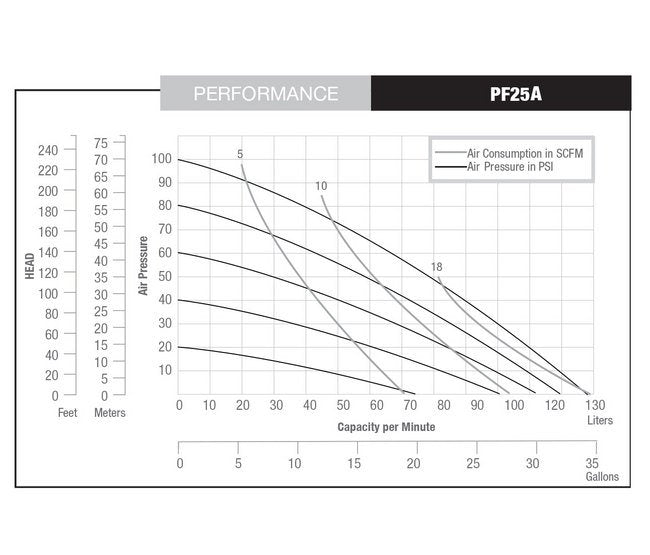

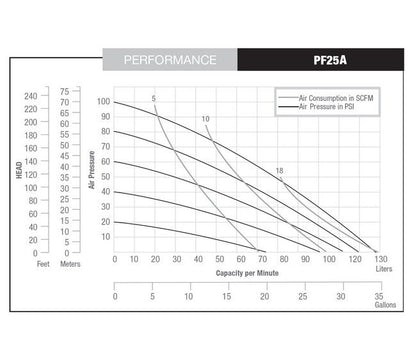

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Viton®/FKM
Specifications Displacement Per Cycle
0.091 gal | 0.34 lit
Specifications Elastomers
PTFE, PTFE
Specifications Fluid Inlet Size
1 in | 25 mm
Specifications Fluid Outlet Size
1 Flange in | 25 Flange mm
Specifications Height
16 Inch | 16 in | 406.40 mm
Specifications Length
16 Inch | 16 in | 0.4064 m | 406.40 mm
Specifications Max Flow Rate
34 gpm | 128.70 lpm
Specifications Model
NPF25A/PPPP/VT/TF/PTF/FL/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
25-901268
Specifications Solids Handling
0.125 in | 3 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
8 Inch | 8 in | 0.2048 m | 204.79 mm
