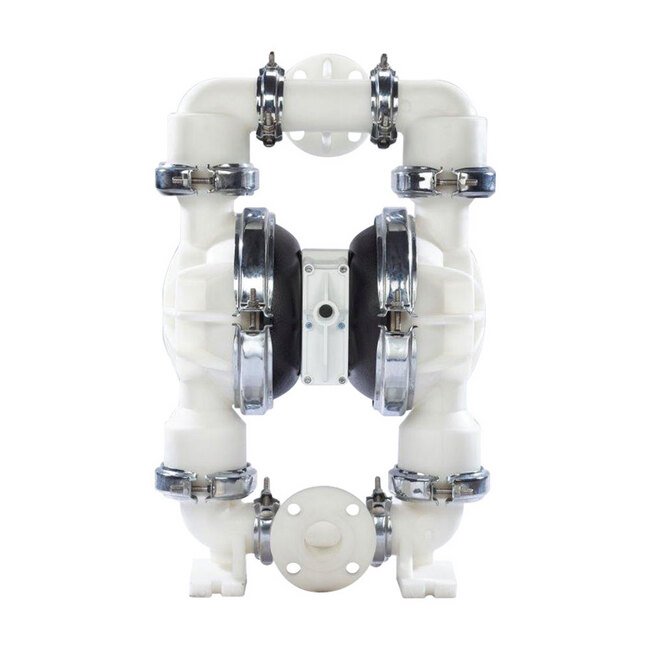

NOMAD® 2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm
NOMAD® 2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm
SKU:MAN-72389a
Efficiently handle solids and slurries with the NOMAD® 2" Polypropylene Pwr-Flo™ AODD Pump. Reliable, chemically resistant design for industrial use.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
NOMAD® 2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm
$899.99
Quantity: 1
Claim Your Seller Account
NOMAD® 2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD® 2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm is a robust and efficient air-driven double diaphragm pump that excels in handling large solids and slurries. Featuring the innovative PWR-FLO™ asymmetrical spool design (ASD), this pump ensures optimal air system efficiency. Crafted with a chemically resistant polypropylene air valve and center section, it boasts excellent reliability for on/off liquid transfer applications like filling and batching. With a maximum flow rate of 156 gpm and a displacement of 0.73 gal per cycle, this pump is a drop-in replacement for Wilden® AODD pumps, offering superior performance and durability for industrial and institutional settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

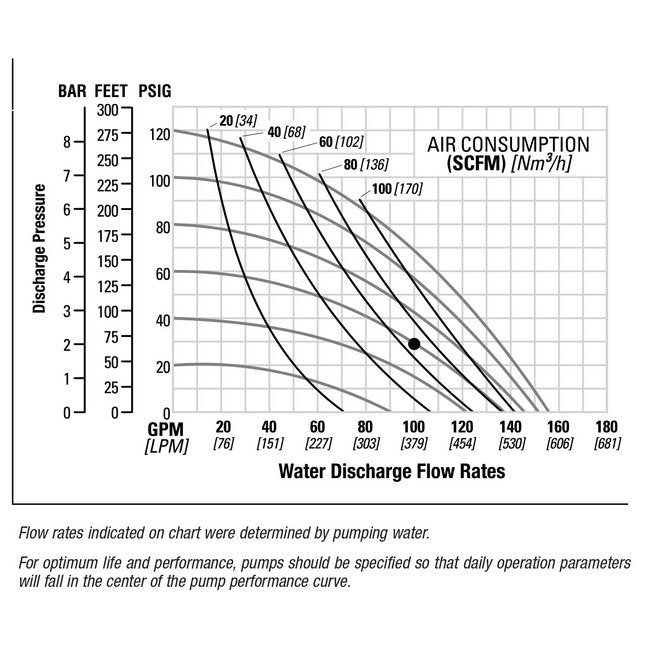

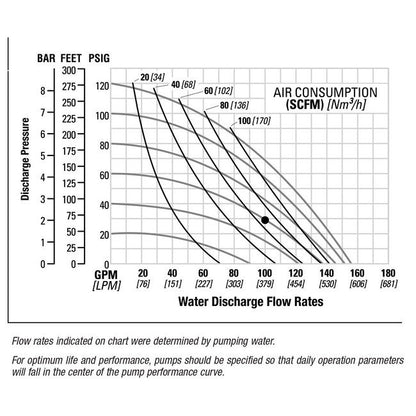

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Hytrel®
Specifications Displacement Per Cycle
0.73 gal | 2.76 lit
Specifications Elastomers
Viton®, Hytrel®
Specifications Fluid Inlet Size
2 in | 51 mm
Specifications Fluid Outlet Size
2 Flange in | 51 Flange mm
Specifications Height
30 Inch | 30 in | 769.62 mm
Specifications Length
30 Inch | 30 in | 0.7696 m | 769.62 mm
Specifications Max Flow Rate
156 gpm | 590.52 lpm
Specifications Model
NPF50/PAAA/FG/FG/PVT/FL/C
Specifications Non Wetted Material
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-22464-1
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
13 Inch | 13 in | 0.3327 m | 332.74 mm
