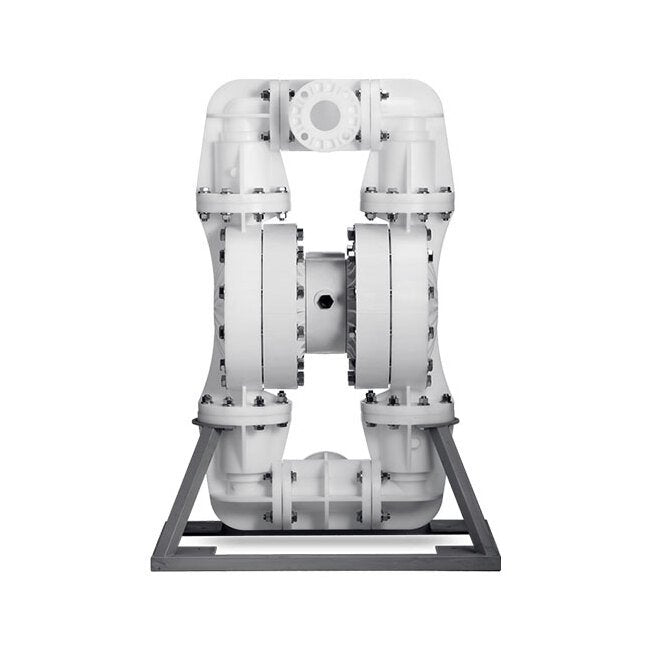

NOMAD® 3" Polypropylene Pwr-Flo™ AODD Pump with Santoprene® Diaphragm
NOMAD® 3" Polypropylene Pwr-Flo™ AODD Pump with Santoprene® Diaphragm
SKU:MAN-a06197
High-performance 3" Polypropylene AODD Pump with Santoprene® Diaphragm, ideal for large solids and slurries. Reliable and efficient design for liquid transfer applications.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
NOMAD® 3" Polypropylene Pwr-Flo™ AODD Pump with Santoprene® Diaphragm
$1,499.99
Quantity: 1
Claim Your Seller Account
NOMAD® 3" Polypropylene Pwr-Flo™ AODD Pump with Santoprene® Diaphragm
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD® 3" Polypropylene Pwr-Flo™ AODD Pump with Santoprene® Diaphragm is a high-performance air-driven double diaphragm pump suitable for handling large solids, slurries, and various liquids. Featuring the PWR-FLO™ asymmetrical spool design (ASD), this pump offers an efficient air system and anti-stalling capabilities, ensuring reliable operation in liquid transfer applications. Constructed with chemically resistant polypropylene, this pump is a drop-in replacement for Wilden® AODD pumps, providing exceptional durability and performance. With a maximum flow rate of 232 gpm, this pump is ideal for industrial and institutional applications requiring robust liquid handling solutions.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Viton® Encapsulated
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Santoprene®
Specifications Displacement Per Cycle
1.52 gal | 5.75 lit
Specifications Elastomers
Viton® Encapsulated, PTFE
Specifications Fluid Inlet Size
3 in | 76 mm
Specifications Fluid Outlet Size
3 Flange in | 76 Flange mm
Specifications Height
50 Inch | 50 in | 1.2776 m | 1277.62 mm
Specifications Length
36 Inch | 36 in | 0.9144 m | 914.40 mm
Specifications Max Flow Rate
232 gpm | 878.22 lpm
Specifications Model
NPF80/PPPP/SN/TF/PTV/FL/B/W
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-120082-1
Specifications Solids Handling
0.5 in | 13 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
23 Inch | 23 in | 0.5842 m | 584.20 mm
