NOMAD® PWR-FLO™ 1/2" Aluminum AODD Pump with Garlock® NEO BACKED Diaphragm
NOMAD® PWR-FLO™ 1/2" Aluminum AODD Pump with Garlock® NEO BACKED Diaphragm
SKU:MAN-7584c9
Get unmatched performance with the NOMAD® PWR-FLO™ 1/2" Aluminum AODD Pump. Superior efficiency & reliability for industrial use.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
NOMAD® PWR-FLO™ 1/2" Aluminum AODD Pump with Garlock® NEO BACKED Diaphragm
$399.99
Quantity: 1
Claim Your Seller Account
NOMAD® PWR-FLO™ 1/2" Aluminum AODD Pump with Garlock® NEO BACKED Diaphragm
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD® PWR-FLO™ 1/2" Aluminum AODD Pump with Garlock® NEO BACKED Diaphragm is a reliable choice for industrial applications. This pump features an efficient air system with an asymmetrical spool design for superior performance. Made of chemically resistant polypropylene, it ensures durability and reliability in liquid transfer tasks. With a max flow rate of 15 gpm and the ability to handle large solids and slurries, this pump is a versatile solution for filling and batching applications.
Product Specifications
Curves 0

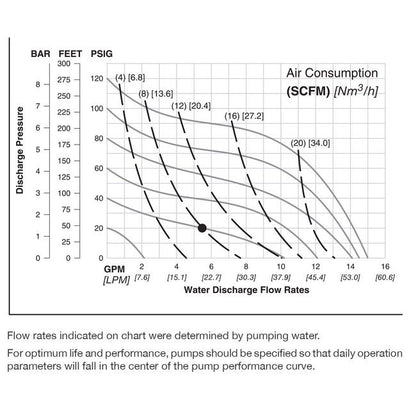

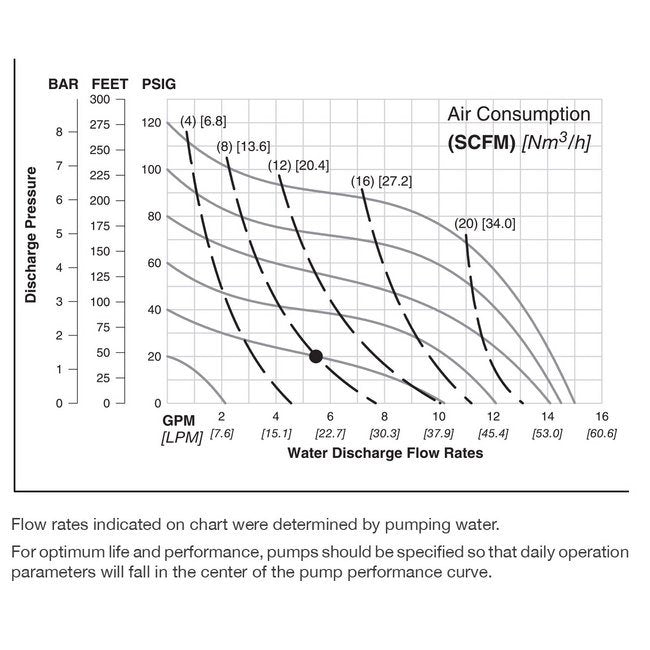

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Aluminum
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Garlock® - NEO BACKED
Specifications Displacement Per Cycle
0.027 gal | 0.10 lit
Specifications Elastomers
PTFE, PTFE
Specifications Fluid Inlet Size
0.5 in | 13 mm
Specifications Fluid Outlet Size
0.5 BSP in | 13 BSP mm
Specifications Height
11 Inch | 11 in | 276.86 mm
Specifications Length
11 Inch | 11 in | 0.2769 m | 276.86 mm
Specifications Max Flow Rate
15 gpm | 56.78 lpm
Specifications Model
NPF15/AAAA/TGN/TF/ATF/B/C/X
Specifications Non Wetted Material
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
15-25465
Specifications Solids Handling
0.0625 in | 2 mm
Specifications Wetted Moc
Aluminum
Specifications Width
8 Inch | 8 in | 0.2007 m | 200.66 mm
