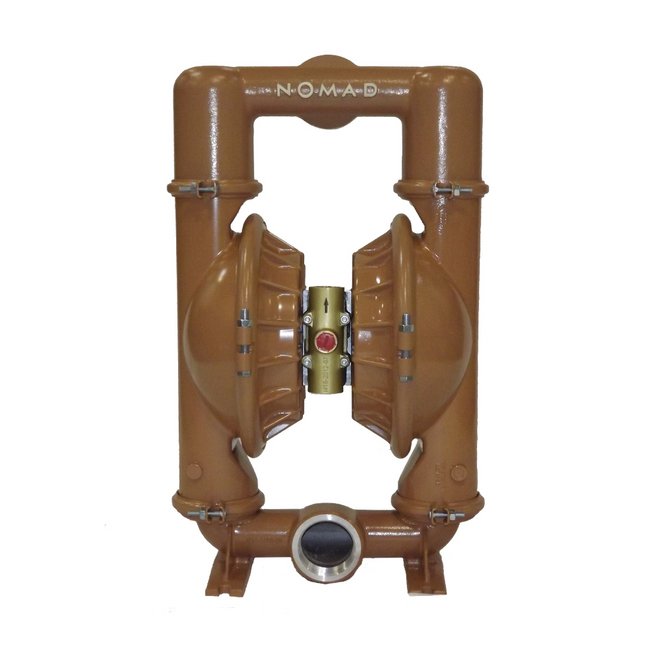

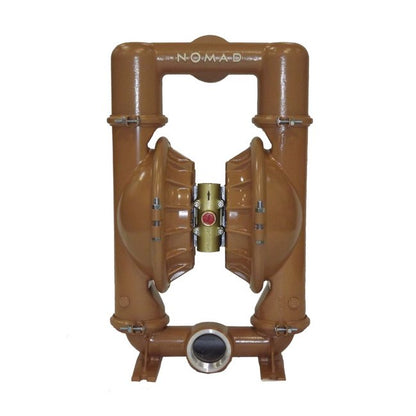

NOMAD® PWR-FLO™ 3" Aluminum AODD Pump - Neoprene Diaphragm
NOMAD® PWR-FLO™ 3" Aluminum AODD Pump - Neoprene Diaphragm
SKU:MAN-114b67
Upgrade to efficiency with the NOMAD® PWR-FLO™ 3" Aluminum AODD Pump - Neoprene Diaphragm. Ideal for industrial applications, it ensures non-stalling performance and reliable operation.
Regular price
$1,699.99
Regular price
Sale price
$1,699.99
Unit price
per
Initiate Order
NOMAD® PWR-FLO™ 3" Aluminum AODD Pump - Neoprene Diaphragm
$1,699.99
Quantity: 1
Claim Your Seller Account
NOMAD® PWR-FLO™ 3" Aluminum AODD Pump - Neoprene Diaphragm
$1,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched efficiency with the NOMAD® PWR-FLO™ 3" Aluminum Trans-Flo™ AODD Pump featuring a robust neoprene diaphragm. Designed as a drop-in replacement for Wilden® pumps, this pump boasts the TRANS FLO GOLD Air Distribution System for non-stalling performance. With Tracker™ shaft seals ensuring precise on/off reliability and a durable aluminum construction, this pump is ideal for industrial applications requiring high-quality and low-maintenance pumping solutions. Solids handling up to 10mm, a max flow rate of 232 gpm, and compliance with industry standards make it a top choice for demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

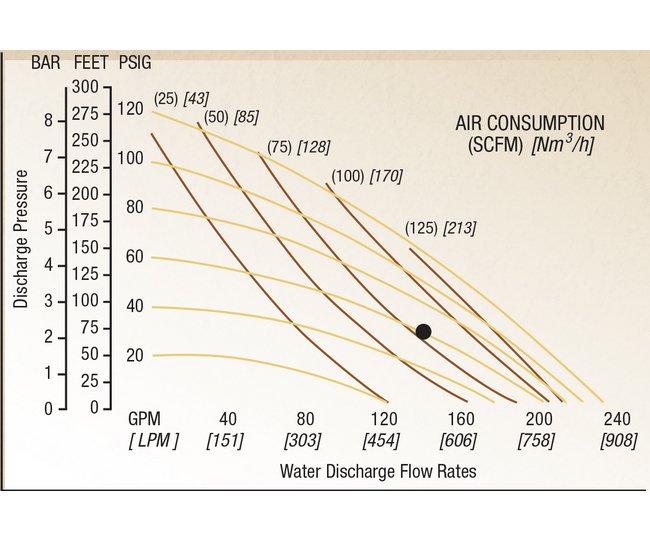

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeFeaturing TRANS FLO GOLD Air Distribution System; a simple, non-stalling designTRANS FLO GOLD features a patent pending differential cap designTracker⢠shaft seals allow for sharp shifts and quality on/off reliabilityTime proven design that is simple to maintain
Specifications Check Valve Seat
Neoprene
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Neoprene
Specifications Displacement Per Cycle
1.4 gal | 5.30 lit
Specifications Elastomers
Neoprene, Neoprene
Specifications Fluid Inlet Size
3 in | 76 mm
Specifications Fluid Outlet Size
3 BSP in | 76 BSP mm
Specifications Height
32 Inch | 32 in | 822.96 mm
Specifications Length
32 Inch | 32 in | 0.8230 m | 822.96 mm
Specifications Max Flow Rate
232 gpm | 878.22 lpm
Specifications Model
NT80/AAAB/NE/NE/NE/B/C/X/OB
Specifications Non Wetted Material
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-2533
Specifications Solids Handling
0.375 in | 10 mm
Specifications Wetted Moc
Aluminum
Specifications Width
17 Inch | 17 in | 0.4267 m | 426.72 mm
