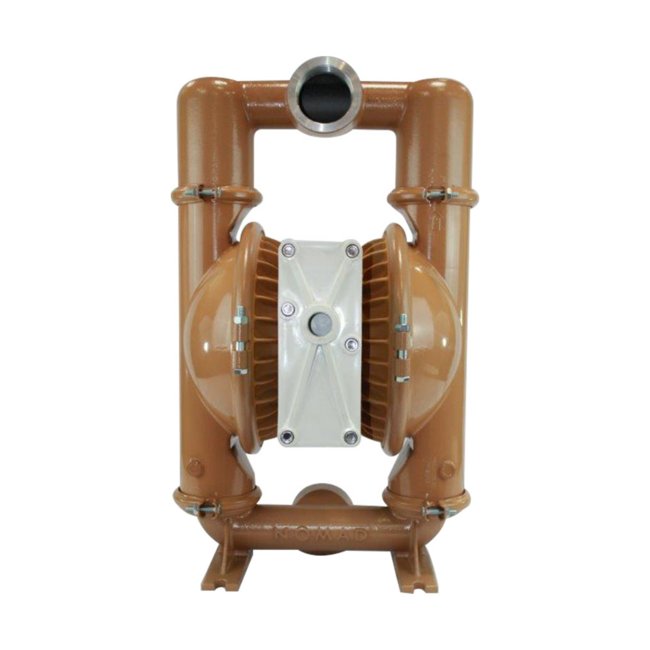

NOMAD® PWR-FLO™ 3" BSP Clamped AODD Pump, Aluminum w/ PTFE Diaphragm
NOMAD® PWR-FLO™ 3" BSP Clamped AODD Pump, Aluminum w/ PTFE Diaphragm
SKU:MAN-1d2b3f
Efficient and reliable NOMAD® PWR-FLO™ 3" BSP AODD Pump with PTFE Diaphragm, ideal for industrial applications.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
NOMAD® PWR-FLO™ 3" BSP Clamped AODD Pump, Aluminum w/ PTFE Diaphragm
$1,499.99
Quantity: 1
Claim Your Seller Account
NOMAD® PWR-FLO™ 3" BSP Clamped AODD Pump, Aluminum w/ PTFE Diaphragm
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD® PWR-FLO™ 3" BSP Clamped AODD Pump offers a drop-in replacement for Wilden® AODD pumps, featuring an innovative asymmetrical spool design for efficient air system operation. With aluminum construction and full-flow PTFE diaphragms, this pump handles large solids and slurries with ease. Its chemical-resistant polypropylene components ensure reliability in liquid transfer applications, while the anti-stalling design enhances performance for filling and batching needs. With a max flow rate of 232 gpm and a displacement of 1.49 gal per cycle, this pump excels in demanding industrial environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0
Performance Curves
Dimensions 0

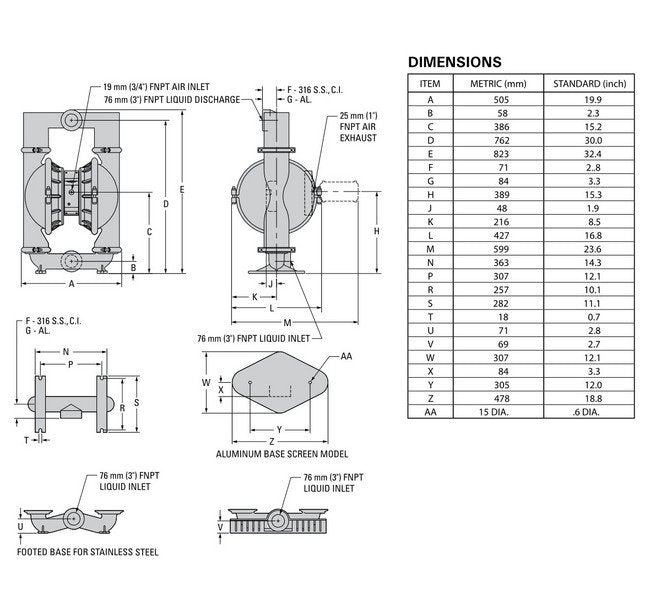

Dimensions
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Aluminum
Specifications Diaphragm Material
PTFE - Full Flow
Specifications Displacement Per Cycle
1.49 gal | 5.64 lit
Specifications Elastomers
PTFE, PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
3 BSP in | 76 BSP mm
Specifications Fluid Outlet Size
3 BSP in | 76 BSP mm
Specifications Height
32 Inch | 32 in | 822.96 mm
Specifications Length
32 Inch | 32 in | 0.8230 m | 822.96 mm
Specifications Max Flow Rate
232 gpm | 878.22 lpm
Specifications Moc
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-25562
Specifications Solids Handling
0.375 in | 10 mm
Specifications Wetted Moc
Aluminum
Specifications Width
21 Inch | 21 in | 0.5232 m | 523.24 mm
