NOMAD® PWR-FLO™ 3" Flanged AODD Pump, Stainless Steel with PTFE - UFI Diaphragm
NOMAD® PWR-FLO™ 3" Flanged AODD Pump, Stainless Steel with PTFE - UFI Diaphragm
SKU:MAN-1f1218
Enhanced for industrial use, NOMAD® PWR-FLO™ 3" Stainless Steel AODD Pump with PTFE - UFI Diaphragm
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
NOMAD® PWR-FLO™ 3" Flanged AODD Pump, Stainless Steel with PTFE - UFI Diaphragm
$1,499.99
Quantity: 1
Claim Your Seller Account
NOMAD® PWR-FLO™ 3" Flanged AODD Pump, Stainless Steel with PTFE - UFI Diaphragm
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

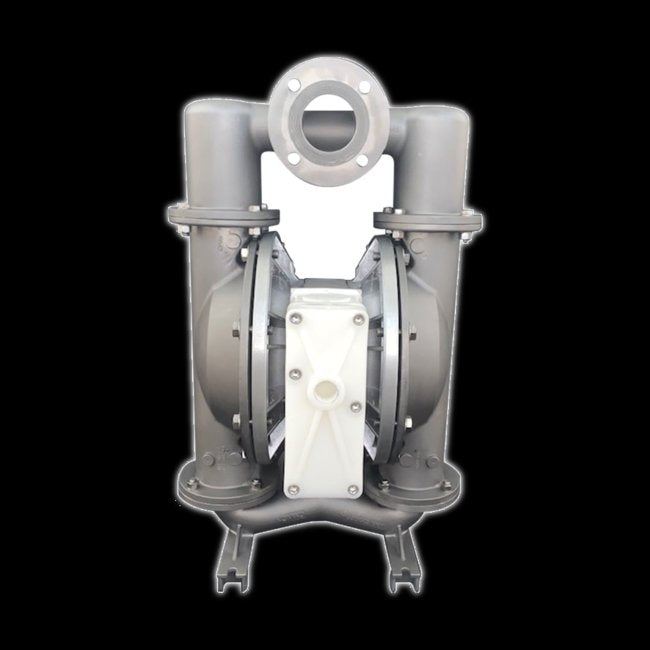

Experience superior performance with the NOMAD® PWR-FLO™ 3" Flanged AODD Pump. Designed as a drop-in replacement for Wilden® pumps, this air-driven double diaphragm pump excels at handling large solids and slurries. With a stainless steel construction and PTFE - UFI diaphragm, it ensures reliable and efficient liquid transfer for filling and batching applications. The pump features an anti-stalling design and an asymmetrical spool for enhanced air system efficiency. Perfect for industrial settings requiring durability and precision.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

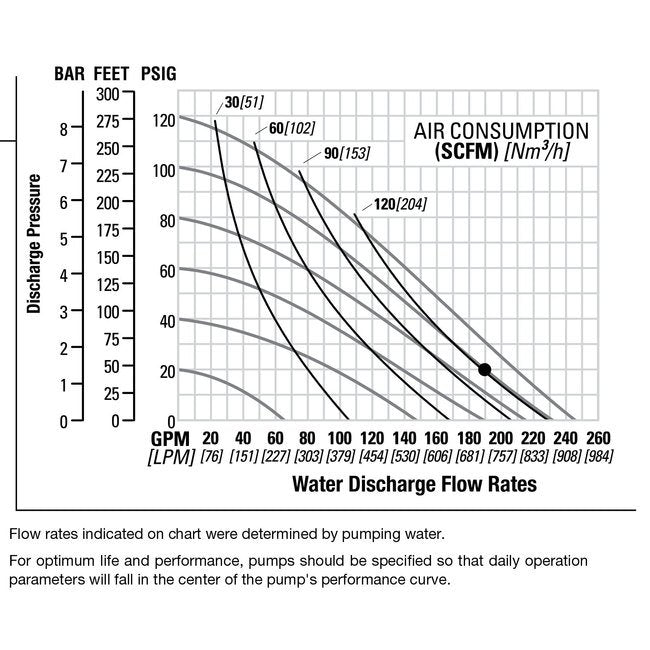

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
PTFE (with Neoprene back-up)
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
PTFE - UFI
Specifications Displacement Per Cycle
1.29 gal | 4.88 lit
Specifications Elastomers
PTFE, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
3 Flanged in | 76 Flanged mm
Specifications Fluid Outlet Size
3 Flanged in | 76 Flanged mm
Specifications Height
35 Inch | 35 in | 894.08 mm
Specifications Length
21 Inch | 21 in | 0.5410 m | 541.02 mm
Specifications Max Flow Rate
246 gpm | 931.21 lpm
Specifications Moc
Stainless Steel
Specifications Model
NPF80/SAAA/TFF/TF/STF/FL/B/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-18562
Specifications Wetted Moc
Stainless Steel
Specifications Width
21 Inch | 21 in | 0.5359 m | 535.94 mm
