Nomad 1" Aluminum PWR-FLO AODD Pump
Nomad 1" Aluminum PWR-FLO AODD Pump
SKU:MAN-01759a
Enhance fluid handling efficiency with the durable Nomad 1" Aluminum PWR-FLO AODD Pump. Ideal for industrial applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Nomad 1" Aluminum PWR-FLO AODD Pump
$899.99
Quantity: 1
Claim Your Seller Account
Nomad 1" Aluminum PWR-FLO AODD Pump
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid handling operations with the Nomad 1" Aluminum PWR-FLO AODD Pump. Designed as a drop-in replacement for Wilden AODD pumps, this pump features an efficient air system with PWR-FLO asymmetrical spool design for enhanced reliability in liquid transfer applications. The aluminum construction and chemically resistant polypropylene components ensure durability and performance. With a max flow rate of 56 gpm and the ability to handle large solids and slurries, this pump is ideal for industrial settings. Trust in its PTFE-UFI Santoprene diaphragm for seamless operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

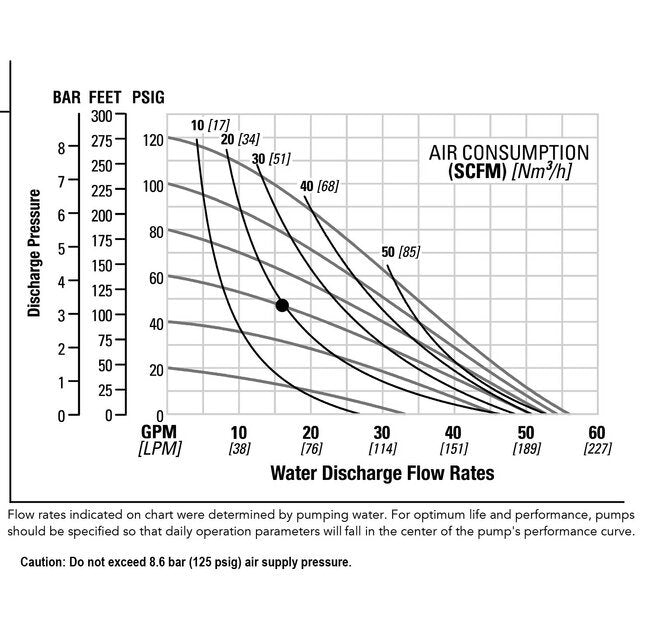

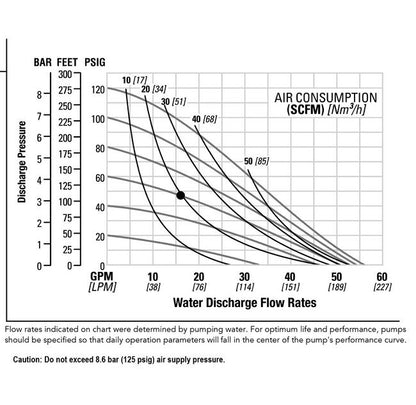

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Aluminum
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
PTFE - UFI Santoprene® back up
Specifications Displacement Per Cycle
0.08 gal | 0.30 lit
Specifications Elastomers
PTFE, PTFE
Specifications Fluid Inlet Size
1 in | 25 mm
Specifications Fluid Outlet Size
1 BSP in | 25 BSP mm
Specifications Height
14 Inch | 14 in | 342.90 mm
Specifications Length
15 Inch | 15 in | 0.3734 m | 373.38 mm
Specifications Max Flow Rate
56 gpm | 211.98 lpm
Specifications Model
NPF250/APPP/TFF/TF/ATF/B/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
250-15662
Specifications Solids Handling
0.08 in | 2 mm
Specifications Wetted Moc
Aluminum
Specifications Width
11 Inch | 11 in | 0.2870 m | 287.02 mm
