Nomad 1" Aluminum Pwr-Flo AODD Pump with PTFE Neoprene Diaphragm
Nomad 1" Aluminum Pwr-Flo AODD Pump with PTFE Neoprene Diaphragm
SKU:MAN-e1adad
Experience power and reliability with the Nomad 1" Aluminum Pwr-Flo AODD Pump, a superior choice for handling solids and slurries.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Nomad 1" Aluminum Pwr-Flo AODD Pump with PTFE Neoprene Diaphragm
$699.99
Quantity: 1
Claim Your Seller Account
Nomad 1" Aluminum Pwr-Flo AODD Pump with PTFE Neoprene Diaphragm
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nomad 1" Aluminum Pwr-Flo AODD Pump with PTFE Neoprene back-up Diaphragm is a high-performance, drop-in replacement for Wilden AODD pumps. Featuring a robust construction with aluminum wetted M.O.C. and chemically resistant polypropylene components, this pump is designed to handle large solids and slurries efficiently. The innovative PWR-FLO asymmetrical spool design ensures reliable air-driven operation, making it ideal for on/off liquid transfer applications such as filling and batching. With a maximum flow rate of 56 gpm and excellent solids handling capabilities, this pump delivers both power and precision for industrial pumping needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

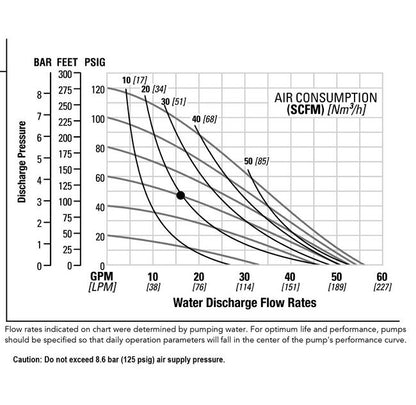

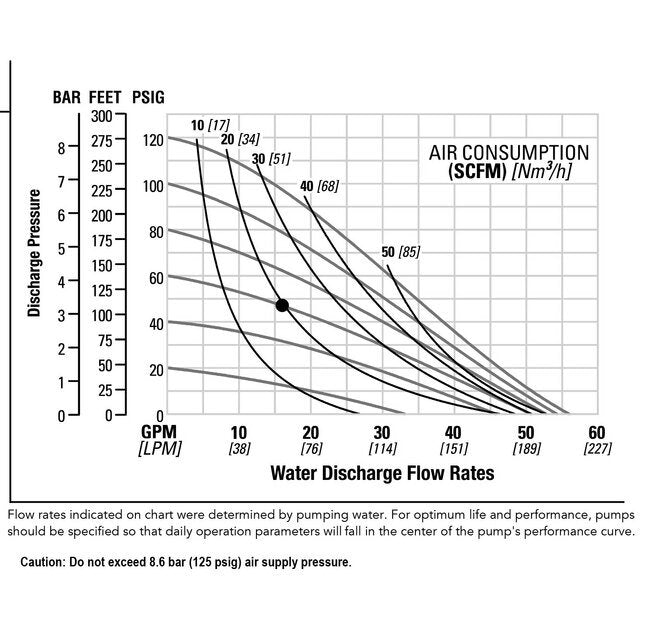

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Aluminum
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
PTFE Neoprene back-up
Specifications Displacement Per Cycle
0.08 gal | 0.30 lit
Specifications Elastomers
PTFE, PTFE
Specifications Fluid Inlet Size
1 in | 25 mm
Specifications Fluid Outlet Size
1 BSP in | 25 BSP mm
Specifications Height
14 Inch | 14 in | 342.90 mm
Specifications Length
15 Inch | 15 in | 0.3734 m | 373.38 mm
Specifications Max Flow Rate
56 gpm | 211.98 lpm
Specifications Model
NPF250/APPP/TF/TF/ATF/B/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
250-1561
Specifications Solids Handling
0.08 in | 2 mm
Specifications Wetted Moc
Aluminum
Specifications Width
11 Inch | 11 in | 0.2870 m | 287.02 mm
