NOMAD 2" Polypropylene Pwr-Flo AODD Pump

NOMAD 2" Polypropylene Pwr-Flo AODD Pump

MAN-9e0513

Efficient Polypropylene AODD Pump with Nordel/EPDM Diaphragm for reliable liquid transfer and solids handling. Drop-in replacement for Wilden pumps.

$899.99
$899.99
Sale

Initiate Order

NOMAD 2" Polypropylene Pwr-Flo AODD Pump

NOMAD 2" Polypropylene Pwr-Flo AODD Pump

$899.99

Quantity: 1

Claim Your Seller Account

NOMAD 2" Polypropylene Pwr-Flo AODD Pump

NOMAD 2" Polypropylene Pwr-Flo AODD Pump

$899.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The NOMAD 2" Polypropylene Pwr-Flo AODD Pump with Nordel/EPDM Diaphragm is a drop-in replacement for Wilden AODD pumps, offering efficient air system design, handling large solids and slurries. Its chemically resistant polypropylene construction ensures reliability in liquid transfer applications. With a flow rate of 156 gpm and 0.25" solids handling, this pump is ideal for filling and batching needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

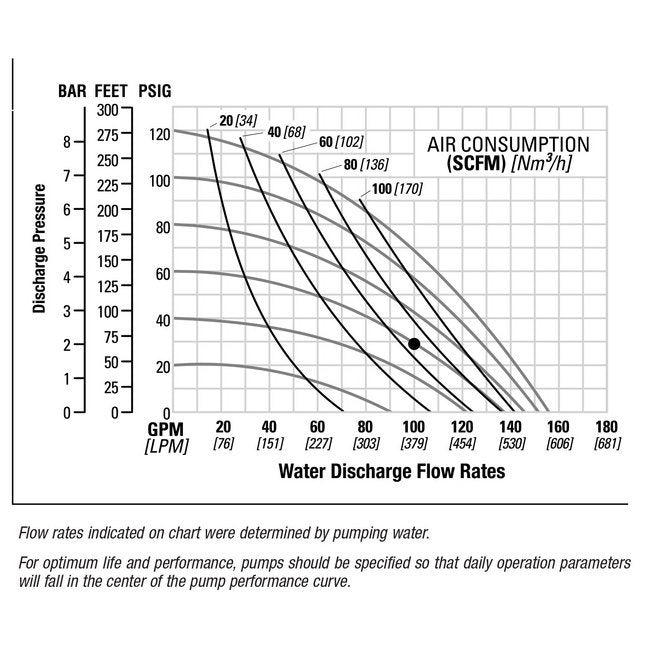

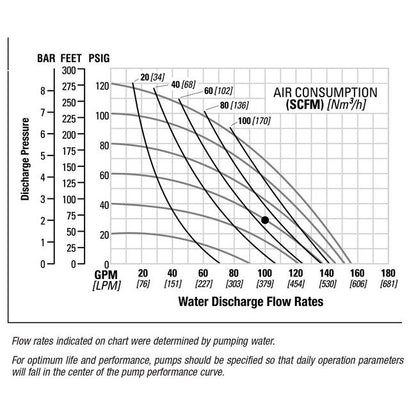

Curves 0
Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO™ asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Viton® Encapsulated
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Nordel®/EPDM
Specifications Displacement Per Cycle
0.73 gal | 2.76 lit
Specifications Elastomers
Viton® Encapsulated, Nordel®/EPDM
Specifications Fluid Inlet Size
2 in | 51 mm
Specifications Fluid Outlet Size
2 Flange in | 51 Flange mm
Specifications Height
30 Inch | 30 in | 769.62 mm
Specifications Length
30 Inch | 30 in | 0.7696 m | 769.62 mm
Specifications Max Flow Rate
156 gpm | 590.52 lpm
Specifications Model
NPF50/PAPP/ND/ND/PTV/FL/C
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-22671
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
13 Inch | 13 in | 0.3327 m | 332.74 mm
