NOMAD 2" Polypropylene Pwr-Flo AODD Pump with Neoprene Maxi-Flex Diaphragm
NOMAD 2" Polypropylene Pwr-Flo AODD Pump with Neoprene Maxi-Flex Diaphragm
SKU:MAN-8465f6
Efficient and reliable 2" Polypropylene AODD Pump with Neoprene Diaphragm for handling solids and slurries.
Regular price
$2,399.99
Regular price
Sale price
$2,399.99
Unit price
per
Initiate Order
NOMAD 2" Polypropylene Pwr-Flo AODD Pump with Neoprene Maxi-Flex Diaphragm
$2,399.99
Quantity: 1
Claim Your Seller Account
NOMAD 2" Polypropylene Pwr-Flo AODD Pump with Neoprene Maxi-Flex Diaphragm
$2,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

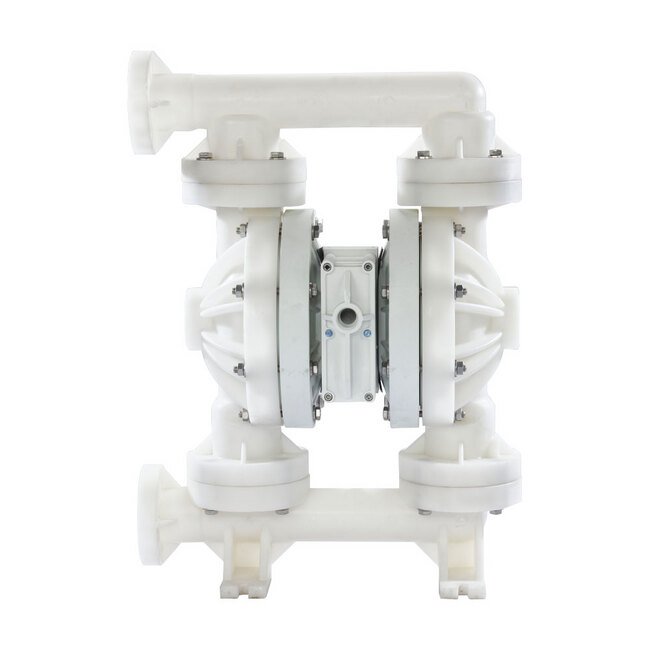

The NOMAD 2" Polypropylene Pwr-Flo AODD Pump with Neoprene Maxi-Flex Diaphragm is a reliable and efficient air-driven double diaphragm pump designed as a drop-in replacement for Wilden AODD pumps. Featuring a Polypropylene construction with chemically resistant components, this pump is capable of handling large solids and slurries with ease. The PWR-FLO asymmetrical spool design ensures an efficient air system, making it perfect for on/off liquid transfer applications like filling and batching. With a max flow rate of 165 gpm, this pump offers exceptional performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

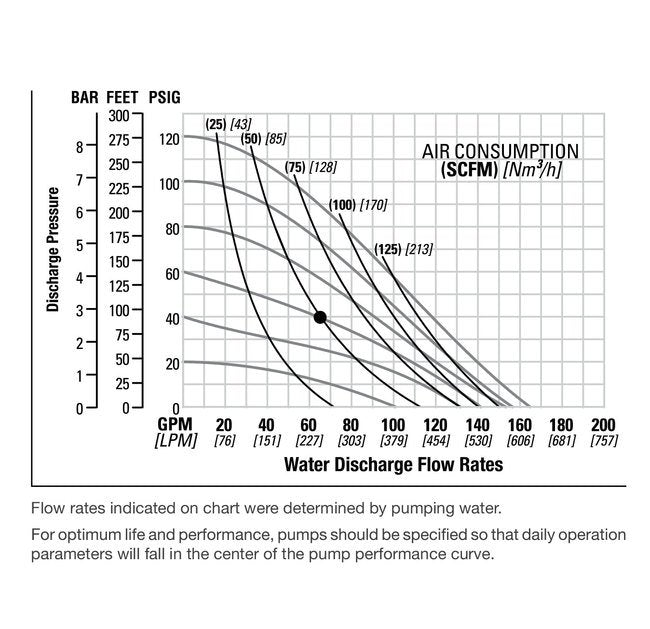

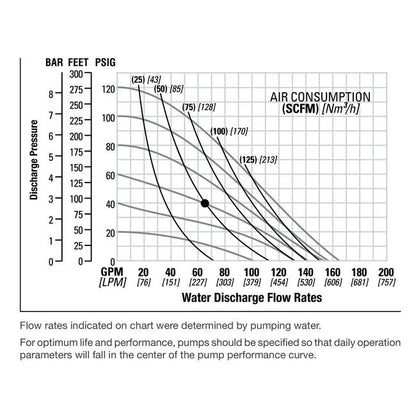

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Neoprene Maxi-Flex
Specifications Displacement Per Cycle
0.727 gal | 2.75 lit
Specifications Elastomers
Buna, Neoprene
Specifications Fluid Inlet Size
2 in | 51 mm
Specifications Fluid Outlet Size
2 Flange in | 51 Flange mm
Specifications Height
32 Inch | 32 in | 805.18 mm
Specifications Length
32 Inch | 32 in | 0.8052 m | 805.18 mm
Specifications Max Flow Rate
165 gpm | 624.59 lpm
Specifications Model
NPF50/PPPP/NEU/NE/PBN/FL/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-12671-1
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
14 Inch | 14 in | 0.3531 m | 353.06 mm
