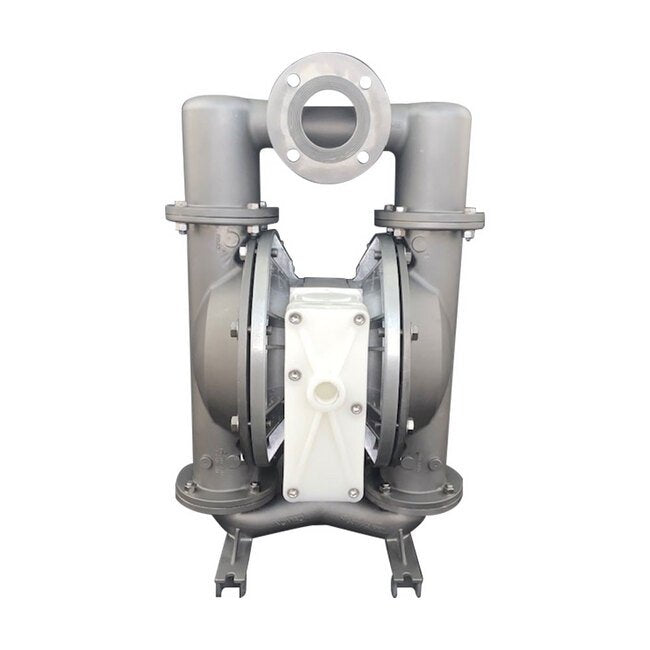

The Nomad 3" Aluminum Pwr-Flo AODD Pump with PTFE-UFI Santoprene Diaphragm is a high-performance air-driven double diaphragm pump designed as a drop-in replacement for Wilden AODD pumps. Its asymmetrical spool design (ASD) ensures efficient air system operation, making it ideal for handling large solids, slurries, and on/off liquid transfer applications. Constructed with chemically resistant polypropylene components, this pump offers excellent reliability and anti-stalling capabilities. With a maximum flow rate of 246 gpm, this pump delivers reliable performance in industrial settings.
Product Specifications
Curves 0

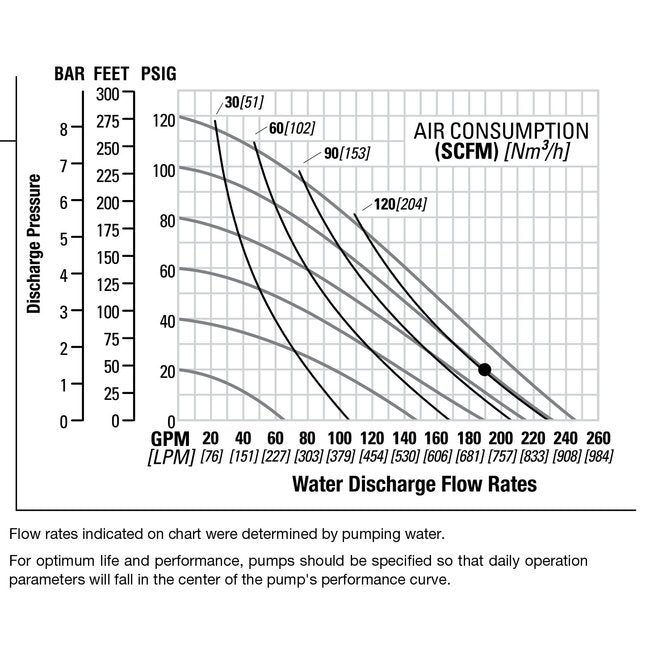

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
PTFE - UFI Santoprene® back up
Specifications Displacement Per Cycle
1.29 gal | 4.88 lit
Specifications Elastomers
PTFE, PTFE
Specifications Fluid Inlet Size
3 in | 76 mm
Specifications Fluid Outlet Size
3 Flanged ANSI in | 76 Flanged ANSI mm
Specifications Height
35 Inch | 35 in | 894.08 mm
Specifications Length
21 Inch | 21 in | 0.5410 m | 541.02 mm
Specifications Max Flow Rate
246 gpm | 931.21 lpm
Specifications Model
NPF80/AAAP/TFF/TF/STF/FLA/B
Specifications Non Wetted Material
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-16662
Specifications Solids Handling
0.375 in | 10 mm
Specifications Wetted Moc
Aluminum
Specifications Width
21 Inch | 21 in | 0.5359 m | 535.94 mm
