NOMAD PWR-FLO™ 1/2" Stainless Steel AODD Pump with Buna Diaphragm
NOMAD PWR-FLO™ 1/2" Stainless Steel AODD Pump with Buna Diaphragm
SKU:MAN-ccbf2a
Reliable NOMAD PWR-FLO™ 1/2" Stainless Steel AODD Pump for handling large solids with efficiency and durability.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
NOMAD PWR-FLO™ 1/2" Stainless Steel AODD Pump with Buna Diaphragm
$899.99
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO™ 1/2" Stainless Steel AODD Pump with Buna Diaphragm
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

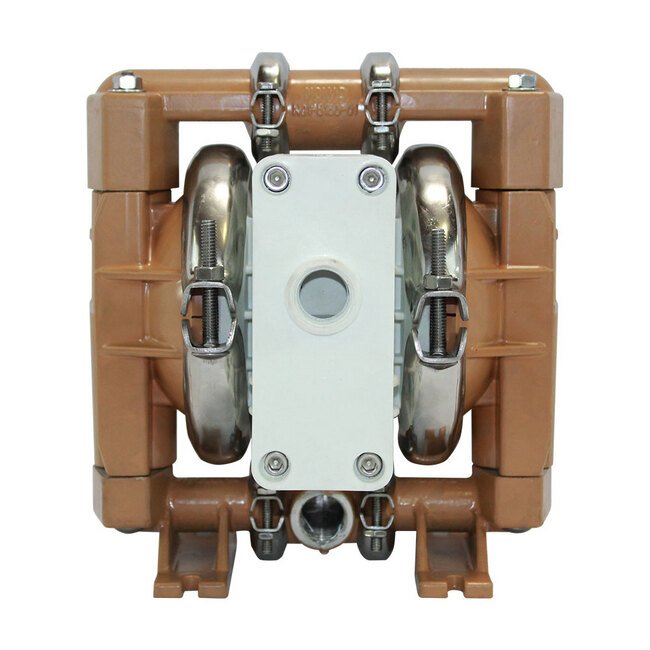

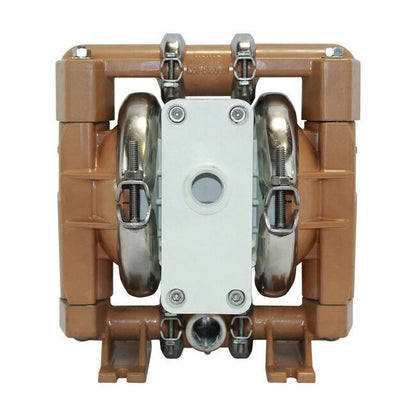

The NOMAD PWR-FLO™ 1/2" Stainless Steel AODD Pump with Buna Diaphragm is a reliable solution for handling large solids and slurries in industrial applications. Featuring an asymmetrical spool design for efficient air system operation, this pump ensures excellent reliability for liquid transfer tasks like filling and batching. The pump is a drop-in replacement for Wilden® AODD pumps, making it easy to integrate into existing systems. With a stainless steel construction and Buna diaphragm, it offers durability and chemical resistance for long-term performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

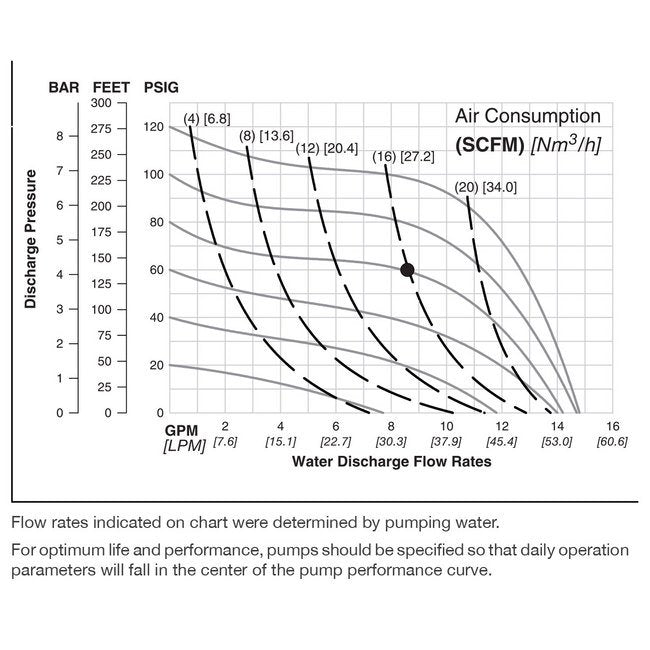

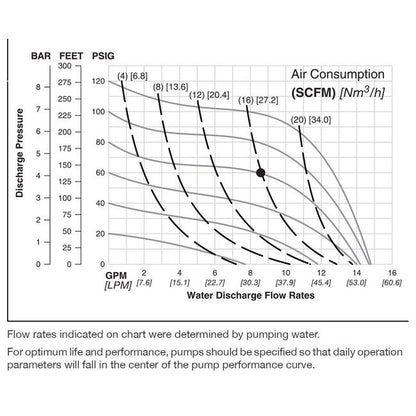

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Buna
Specifications Displacement Per Cycle
0.027 gal | 0.10 lit
Specifications Elastomers
Buna, Buna
Specifications Fluid Inlet Size
0.5 in | 13 mm
Specifications Fluid Outlet Size
0.5 BSP in | 13 BSP mm
Specifications Height
11 Inch | 11 in | 276.86 mm
Specifications Length
11 Inch | 11 in | 0.2769 m | 276.86 mm
Specifications Max Flow Rate
14.8 gpm | 56.02 lpm
Specifications Model
NPF15/SAAA/BN/BN/SBN/B/C/X
Specifications Non Wetted Material
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
15-2746
Specifications Solids Handling
0.0625 in | 2 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
8 Inch | 8 in | 0.2007 m | 200.66 mm
