Nomad PWR-FLO™ 1" Aluminum AODD Pump with PTFE Neoprene Diaphragm
Nomad PWR-FLO™ 1" Aluminum AODD Pump with PTFE Neoprene Diaphragm
SKU:MAN-5a4838
Efficient and reliable Nomad PWR-FLO™ 1" Aluminum AODD Pump with PTFE Neoprene Diaphragm for industrial liquid transfer. Chemically resistant and anti-stalling design.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Nomad PWR-FLO™ 1" Aluminum AODD Pump with PTFE Neoprene Diaphragm
$799.99
Quantity: 1
Claim Your Seller Account
Nomad PWR-FLO™ 1" Aluminum AODD Pump with PTFE Neoprene Diaphragm
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nomad PWR-FLO™ 1" Aluminum AODD Pump with PTFE Neoprene Diaphragm is a robust and reliable industrial pump designed for efficient liquid transfer, ideal for filling, batching, and handling large solids and slurries. Featuring an asymmetrical spool design for enhanced air system efficiency, this pump offers exceptional reliability and anti-stalling performance. With chemically resistant polypropylene construction and stainless steel components, it ensures durability and long-term use. This drop-in replacement for Wilden® AODD pumps meets stringent industry standards and is a dependable choice for a wide range of applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

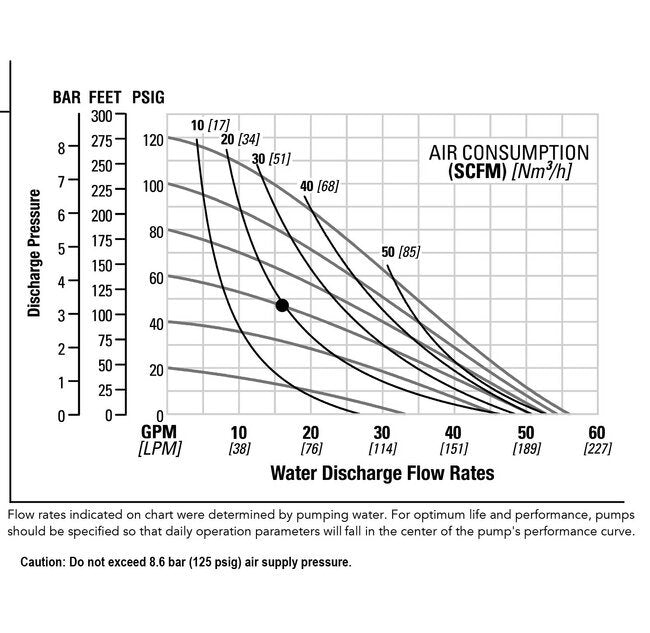

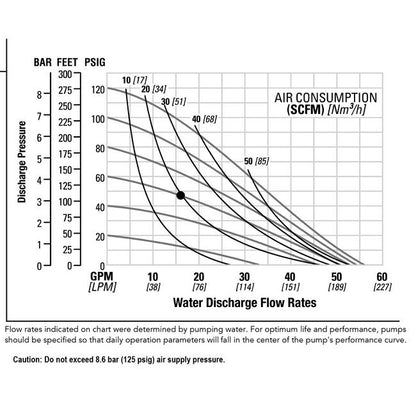

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
PTFE Neoprene back-up
Specifications Displacement Per Cycle
0.08 gal | 0.30 lit
Specifications Elastomers
PTFE, Stainless Steel
Specifications Fluid Inlet Size
1 in | 25 mm
Specifications Fluid Outlet Size
1 Flanged ANSI in | 25 Flanged ANSI mm
Specifications Height
14 Inch | 14 in | 342.90 mm
Specifications Length
15 Inch | 15 in | 0.3734 m | 373.38 mm
Specifications Max Flow Rate
56 gpm | 211.98 lpm
Specifications Model
NPF250/APPP/TF/SS/STF/FLA/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
250-16683-1
Specifications Solids Handling
0.08 in | 2 mm
Specifications Wetted Moc
Aluminum
Specifications Width
11 Inch | 11 in | 0.2870 m | 287.02 mm
