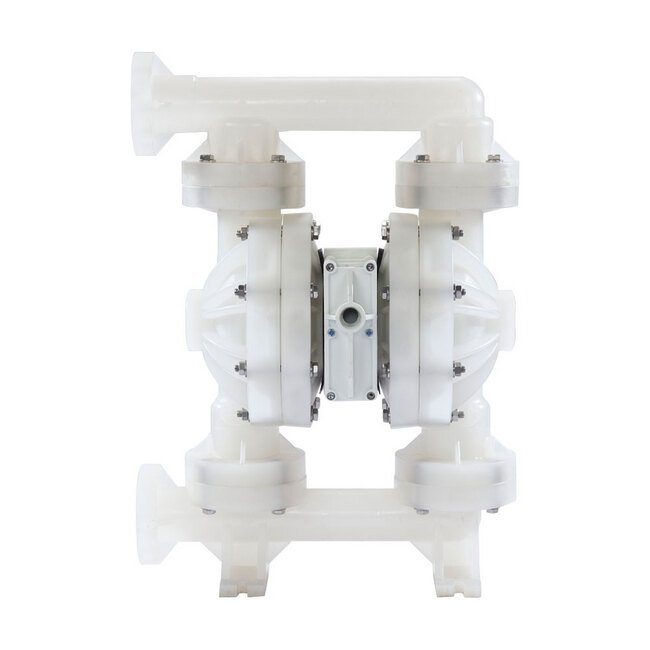

NOMAD PWR-FLO 1 1/2" Polypropylene AODD Pump
NOMAD PWR-FLO 1 1/2" Polypropylene AODD Pump
SKU:MAN-8efb8f
Efficient and reliable, the NOMAD PWR-FLO 1 1/2" Polypropylene AODD Pump is a top choice for handling liquids and slurries.
Regular price
$1,399.99
Regular price
Sale price
$1,399.99
Unit price
per
Initiate Order
NOMAD PWR-FLO 1 1/2" Polypropylene AODD Pump
$1,399.99
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO 1 1/2" Polypropylene AODD Pump
$1,399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD PWR-FLO 1 1/2" Polypropylene AODD Pump is a versatile pump designed as a drop-in replacement for Wilden AODD pumps. Crafted with a robust Polypropylene construction, this pump features a Nordel/EPDM diaphragm for enhanced durability. With a displacement of 0.15 gallons per cycle and the ability to handle solids up to 0.25 inches, this pump is ideal for handling large solids and slurries efficiently. The innovative PWR-FLO asymmetrical spool design ensures reliable performance in liquid transfer applications, making it perfect for filling and batching tasks.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

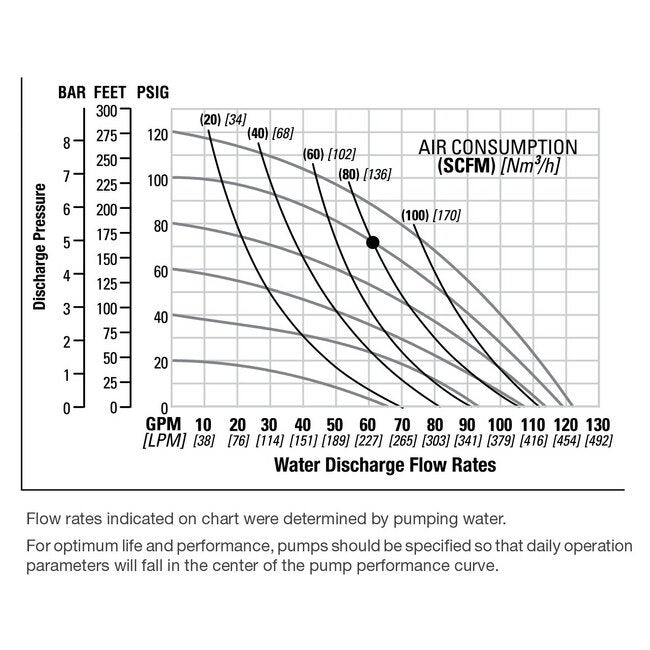

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Viton® Encapsulated
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Nordel®/EPDM
Specifications Displacement Per Cycle
0.15 gal | 0.57 lit
Specifications Elastomers
Viton® Encapsulated, Nordel®/EPDM
Specifications Fluid Inlet Size
1.5 in | 38 mm
Specifications Fluid Outlet Size
1.5 Flange in | 38 Flange mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
12 Inch | 12 in | 0.2997 m | 299.72 mm
Specifications Max Flow Rate
84 gpm | 317.97 lpm
Specifications Model
NPF40/PPPP/ND/ND/PTV/FL/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
40-12671
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
19 Inch | 19 in | 0.4775 m | 477.52 mm
