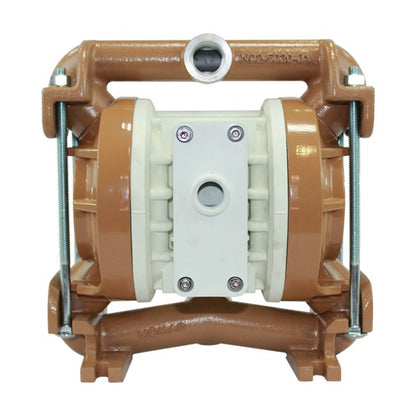

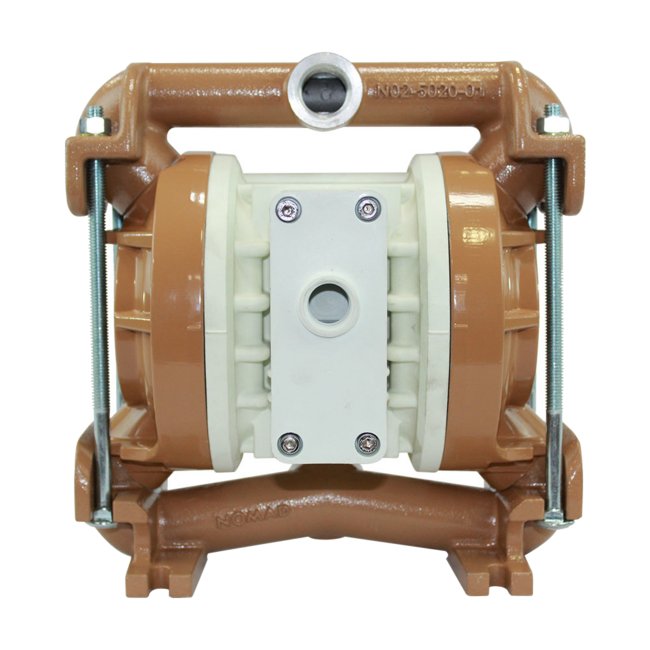

NOMAD PWR-FLO 1" Aluminum AODD Pump with PTFE Diaphragm
NOMAD PWR-FLO 1" Aluminum AODD Pump with PTFE Diaphragm
SKU:MAN-b78148
Efficient and reliable NOMAD PWR-FLO™ Aluminum AODD Pump for large solids and slurries.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
NOMAD PWR-FLO 1" Aluminum AODD Pump with PTFE Diaphragm
$799.99
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO 1" Aluminum AODD Pump with PTFE Diaphragm
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD PWR-FLO™ AODD Pump is designed as a drop-in replacement for Wilden® pumps, offering top-notch performance and reliability. Constructed with aluminum and a PTFE diaphragm (with Neoprene back-up), this pump can handle large solids and slurries efficiently. Featuring an asymmetrical spool design for optimal air system operation, it ensures excellent reliability in liquid transfer applications. With a max flow rate of 45 gpm, this pump is ideal for filling and batching tasks. The chemically resistant polypropylene air valve and center section make it a durable and dependable choice for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

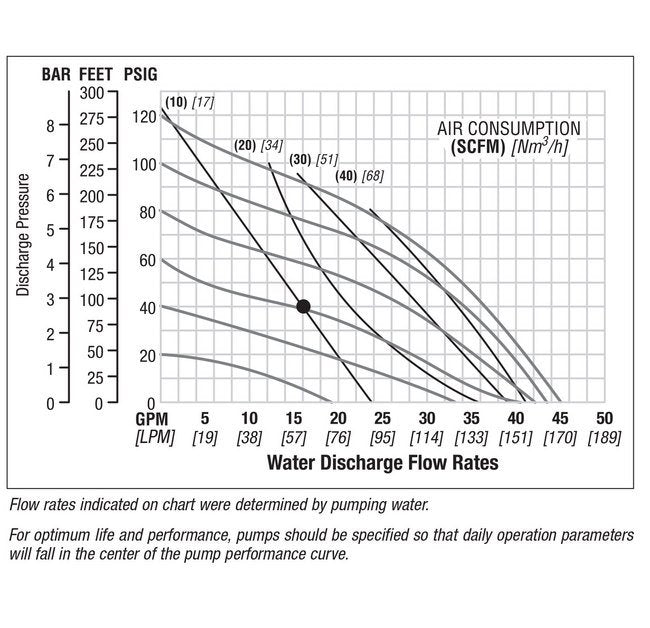

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
PTFE (with Neoprene back-up)
Specifications Displacement Per Cycle
0.091 gal | 0.34 lit
Specifications Elastomers
PTFE
Specifications Fluid Inlet Size
1 BSP in | 25 BSP mm
Specifications Fluid Outlet Size
1 BSP in | 25 BSP mm
Specifications Height
11 Inch | 11 in | 279.40 mm
Specifications Length
11 Inch | 11 in | 0.2794 m | 279.40 mm
Specifications Max Flow Rate
45 gpm | 170.34 lpm
Specifications Moc
Aluminum
Specifications Model
NPF25/APPP/TF/SS/STF/B/B
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
25-15683
Specifications Solids Handling
0.125 in | 3 mm
Specifications Wetted Moc
Aluminum
Specifications Width
8 Inch | 8 in | 0.2007 m | 200.66 mm
