NOMAD PWR-FLO 1" Stainless Steel AODD Pump with Hytrel Diaphragm
NOMAD PWR-FLO 1" Stainless Steel AODD Pump with Hytrel Diaphragm
SKU:MAN-6acd59
Reliable NOMAD PWR-FLO AODD Pump - Stainless Steel with Hytrel Diaphragm. Ideal for industrial and institutional use.
Regular price
$1,350.00
Regular price
Sale price
$1,350.00
Unit price
per
Initiate Order
NOMAD PWR-FLO 1" Stainless Steel AODD Pump with Hytrel Diaphragm
$1,350.00
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO 1" Stainless Steel AODD Pump with Hytrel Diaphragm
$1,350.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD PWR-FLO 1" Stainless Steel AODD Pump, featuring a durable Hytrel diaphragm, is a reliable drop-in replacement for Wilden AODD pumps. Its air-driven double diaphragm design efficiently handles large solids and slurries. The PWR-FLO ASD ensures exceptional reliability in liquid transfer applications, thanks to its anti-stalling design and chemically resistant polypropylene components. With a maximum flow rate of 56 gpm, stainless steel construction, and impressive solids handling capability, this pump is ideal for industrial and institutional needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

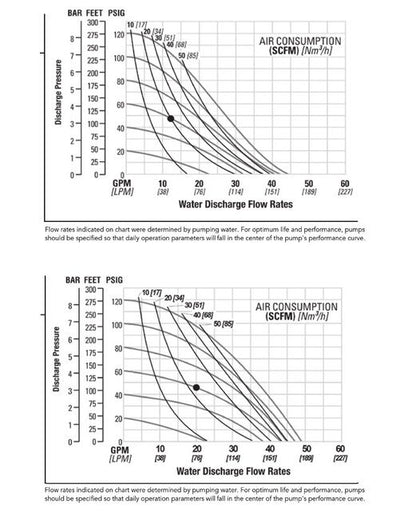

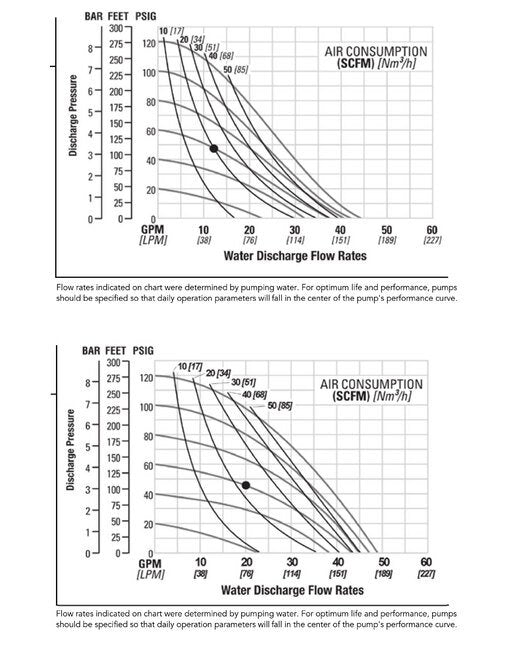

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Hytrel®
Specifications Displacement Per Cycle
0.08 gal | 0.30 lit
Specifications Elastomers
Hytrel®, Hytrel®
Specifications Fluid Inlet Size
1 in | 25 mm
Specifications Fluid Outlet Size
1 BSP in | 25 BSP mm
Specifications Height
14 Inch | 14 in | 342.90 mm
Specifications Length
15 Inch | 15 in | 0.3734 m | 373.38 mm
Specifications Max Flow Rate
56 gpm | 211.98 lpm
Specifications Model
NPNF250/SPPP/FG/FG/SFG/B/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
250-17664
Specifications Solids Handling
0.125 in | 3 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
11 Inch | 11 in | 0.2870 m | 287.02 mm
