NOMAD PWR-FLO 1" Stainless Steel AODD Pump with PTFE Neoprene Diaphragm
NOMAD PWR-FLO 1" Stainless Steel AODD Pump with PTFE Neoprene Diaphragm
SKU:MAN-f30725
Reliable and efficient 1" Stainless Steel AODD Pump with PTFE Neoprene back-up diaphragm for seamless liquid transfer.
Regular price
$789.99
Regular price
Sale price
$789.99
Unit price
per
Initiate Order
NOMAD PWR-FLO 1" Stainless Steel AODD Pump with PTFE Neoprene Diaphragm
$789.99
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO 1" Stainless Steel AODD Pump with PTFE Neoprene Diaphragm
$789.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your fluid handling system with the NOMAD PWR-FLO 1" Stainless Steel AODD Pump featuring a PTFE Neoprene back-up diaphragm. This pump is a drop-in replacement for Wilden AODD pumps, perfect for handling large solids and slurries. The asymmetrical spool design ensures efficient air usage and anti-stalling properties, making it reliable in on/off liquid transfer applications. With chemically resistant polypropylene components and a stainless steel check valve seat, this pump guarantees durability and exceptional performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

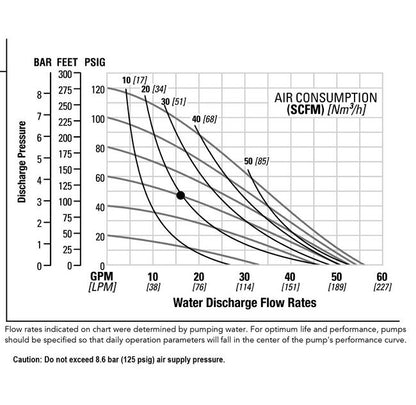

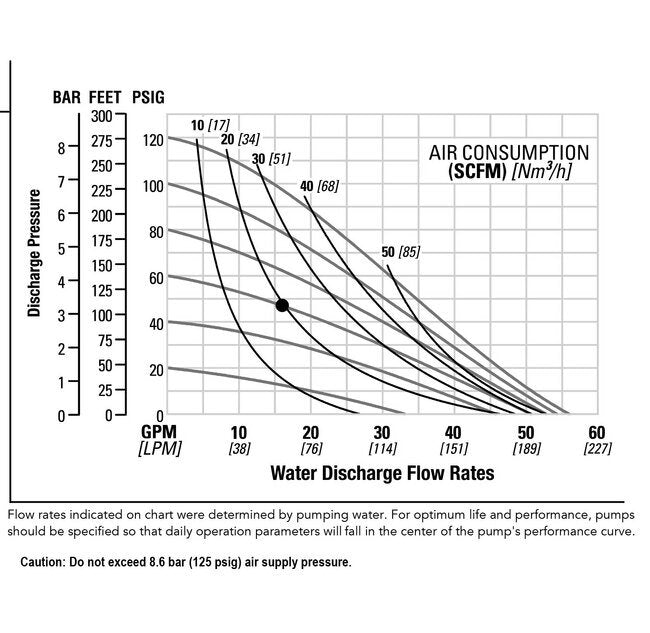

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
PTFE Neoprene back-up
Specifications Displacement Per Cycle
0.08 gal | 0.30 lit
Specifications Elastomers
PTFE, PTFE
Specifications Fluid Inlet Size
1 in | 25 mm
Specifications Fluid Outlet Size
1 NPT in | 25 NPT mm
Specifications Height
14 Inch | 14 in | 342.90 mm
Specifications Length
15 Inch | 15 in | 0.3734 m | 373.38 mm
Specifications Max Flow Rate
56 gpm | 211.98 lpm
Specifications Model
NPF250/SPPP/TF/TF/STF/N/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
250-1861
Specifications Solids Handling
0.08 in | 2 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
11 Inch | 11 in | 0.2870 m | 287.02 mm
