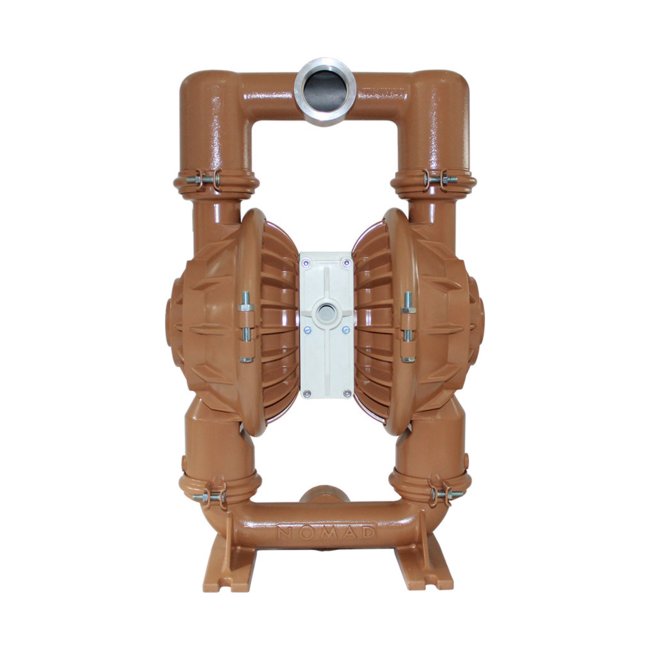

NOMAD PWR-FLO 2" Aluminum AODD Pump with Garlock EPDM Diaphragm
NOMAD PWR-FLO 2" Aluminum AODD Pump with Garlock EPDM Diaphragm
SKU:MAN-b79036
High-performance NOMAD PWR-FLO AODD Pump - Aluminum with Garlock EPDM Diaphragm. Max flow rate 131 gpm. Solids handling 0.25 in.
Regular price
$849.99
Regular price
Sale price
$849.99
Unit price
per
Initiate Order
NOMAD PWR-FLO 2" Aluminum AODD Pump with Garlock EPDM Diaphragm
$849.99
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO 2" Aluminum AODD Pump with Garlock EPDM Diaphragm
$849.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD PWR-FLO AODD Pump is a high-performance solution designed as a drop-in replacement for Wilden AODD pumps. Crafted with aluminum and a Garlock EPDM backed diaphragm, this pump excels at handling large solids and slurries efficiently. Its PWR-FLO asymmetrical spool design ensures reliable on/off liquid transfer for filling and batching applications. With a chemically resistant polypropylene air valve and center section, this pump offers durability and superior performance. Experience a maximum flow rate of 131 gpm and solid handling capability of 0.25 inches with the precision and quality of NOMAD engineering.
Product Specifications
Curves 0

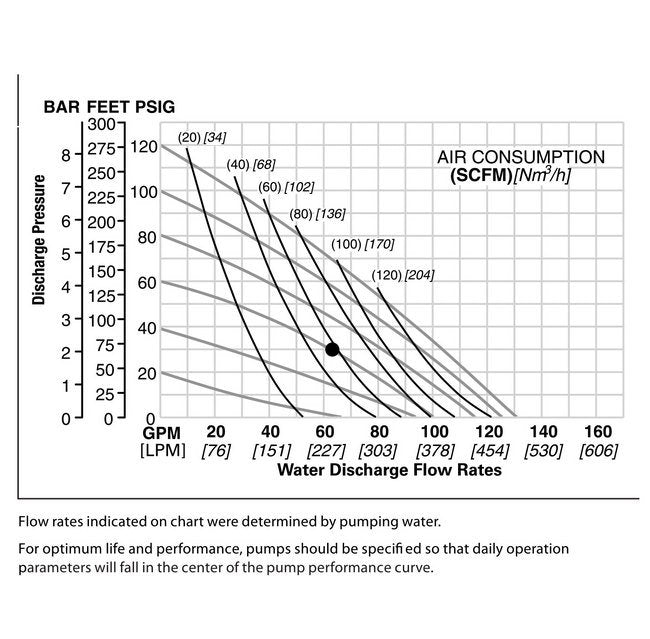

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
PTFE (with Neoprene back-up)
Specifications Check Valve Seat
Aluminum
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Garlock® - EPDM BACKED
Specifications Displacement Per Cycle
0.44 gal | 1.67 lit
Specifications Elastomers
PTFE, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
2 BSP in | 51 BSP mm
Specifications Fluid Outlet Size
2 BSP in | 51 BSP mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
26 Inch | 26 in | 0.6680 m | 668.02 mm
Specifications Max Flow Rate
131 gpm | 495.89 lpm
Specifications Moc
Aluminum
Specifications Model
NPF50/AAPP/TGE/TF/ATF/B/C
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-25666
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Aluminum
Specifications Width
14 Inch | 14 in | 0.3429 m | 342.90 mm
