NOMAD PWR-FLO 2" BSP AODD Pump, Aluminum, Garlock-Vit Diaphragm
NOMAD PWR-FLO 2" BSP AODD Pump, Aluminum, Garlock-Vit Diaphragm
SKU:MAN-152c1d
Efficient and reliable NOMAD PWR-FLO 2" AODD Pump with Garlock-Vit diaphragm for liquid transfer applications.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
NOMAD PWR-FLO 2" BSP AODD Pump, Aluminum, Garlock-Vit Diaphragm
$899.99
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO 2" BSP AODD Pump, Aluminum, Garlock-Vit Diaphragm
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

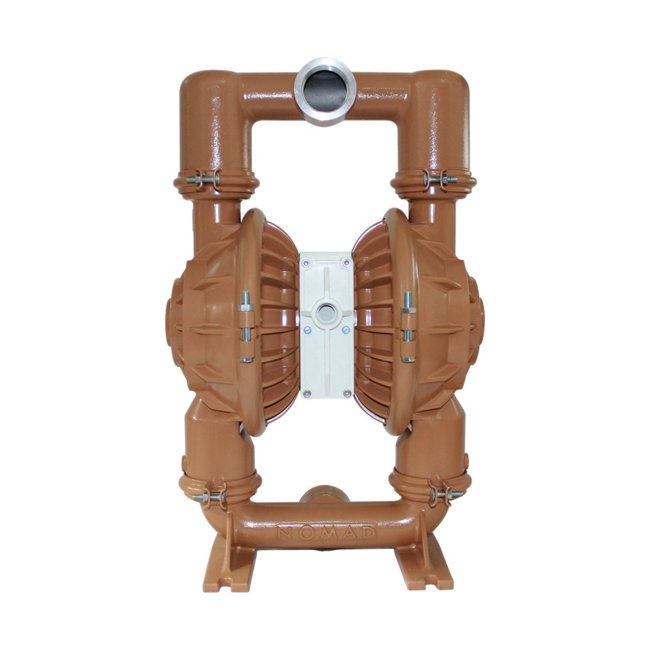

The NOMAD PWR-FLO 2" BSP AODD Pump is a reliable solution for handling large solids and slurries. Featuring an asymmetrical spool design for efficient air system operation, it ensures excellent reliability in liquid transfer applications. With chemically resistant polypropylene construction, aluminum wetted parts, and a Garlock-Vit diaphragm, this pump offers superior performance and durability. The maximum flow rate of 131 gpm makes it ideal for filling and batching tasks.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

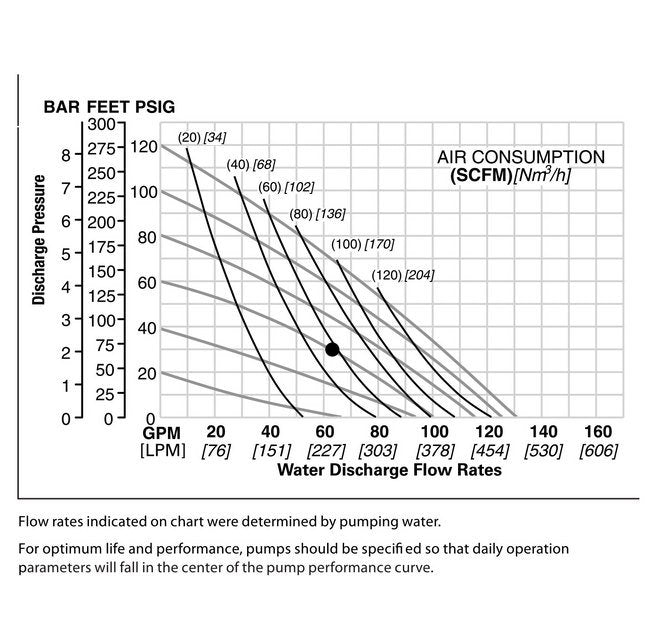

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
PTFE (with Neoprene back-up)
Specifications Check Valve Seat
Aluminum
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Garlock® - Vit on BACKED
Specifications Displacement Per Cycle
0.44 gal | 1.67 lit
Specifications Elastomers
PTFE, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
2 BSP in | 51 BSP mm
Specifications Fluid Outlet Size
2 BSP in | 51 BSP mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
26 Inch | 26 in | 0.6680 m | 668.02 mm
Specifications Max Flow Rate
131 gpm | 495.89 lpm
Specifications Moc
Aluminum
Specifications Model
NPF50/AAPP/TGV/TF/ATF/B/C
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-25667
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Aluminum
Specifications Width
14 Inch | 14 in | 0.3429 m | 342.90 mm
