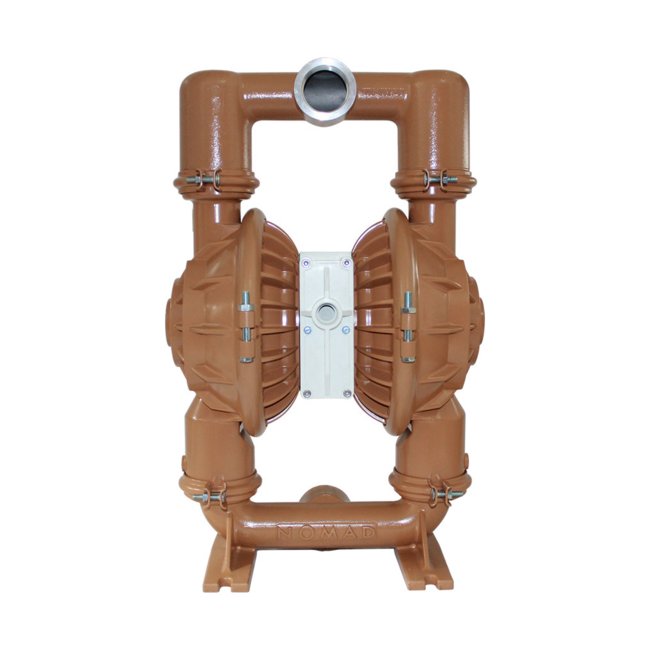

NOMAD PWR-FLO 2" BSP AODD Pump, Ductile Iron w/ PTFE Diaphragm
NOMAD PWR-FLO 2" BSP AODD Pump, Ductile Iron w/ PTFE Diaphragm
SKU:MAN-fe3e1a
Efficient and reliable NOMAD PWR-FLO 2" BSP AODD Pump for industrial applications.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
NOMAD PWR-FLO 2" BSP AODD Pump, Ductile Iron w/ PTFE Diaphragm
$799.99
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO 2" BSP AODD Pump, Ductile Iron w/ PTFE Diaphragm
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD PWR-FLO 2" BSP AODD Pump is a versatile solution for various fluid handling applications. Featuring a drop-in replacement for Wilden AODD pumps, this pump is designed to handle large solids and slurries efficiently. With a durable Ductile Iron construction and PTFE diaphragm with Neoprene back-up, it ensures reliable performance in on/off liquid transfer tasks. The asymmetrical spool design enhances air system efficiency, while the chemically resistant polypropylene components contribute to longevity and resistance. Ideal for filling, batching, and similar operations, this pump offers a maximum flow rate of 131 gpm, meeting the demands of industrial environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

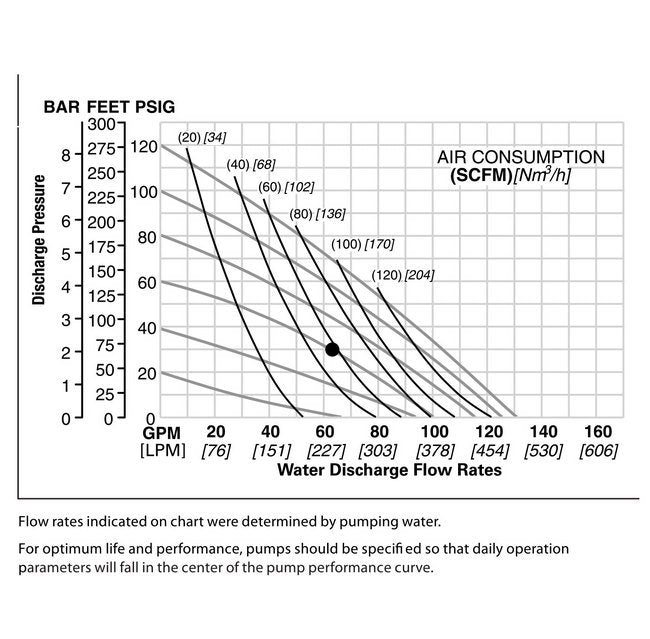

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
PTFE (with Neoprene back-up)
Specifications Check Valve Seat
Mild Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
PTFE (with Neoprene back-up)
Specifications Displacement Per Cycle
0.44 gal | 1.67 lit
Specifications Elastomers
PTFE, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
2 BSP in | 51 BSP mm
Specifications Fluid Outlet Size
2 BSP in | 51 BSP mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
26 Inch | 26 in | 0.6680 m | 668.02 mm
Specifications Max Flow Rate
131 gpm | 495.89 lpm
Specifications Moc
Ductile Iron
Specifications Model
NPF50/WWPP/TF/TF/MTF/B/C/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-51161
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Ductile Iron
Specifications Width
14 Inch | 14 in | 0.3429 m | 342.90 mm
