NOMAD PWR-FLO 2" Flanged Polypropylene AODD Pump
NOMAD PWR-FLO 2" Flanged Polypropylene AODD Pump
SKU:MAN-e2339e
Reliable NOMAD PWR-FLO 2" Polypropylene AODD Pump for efficient handling of large solids and slurries.
Regular price
$879.99
Regular price
Sale price
$879.99
Unit price
per
Initiate Order
NOMAD PWR-FLO 2" Flanged Polypropylene AODD Pump
$879.99
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO 2" Flanged Polypropylene AODD Pump
$879.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

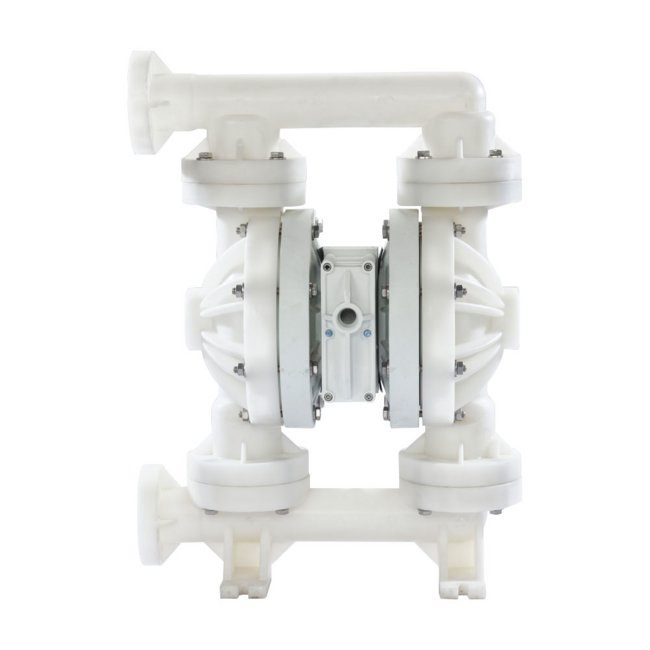

The NOMAD PWR-FLO 2" Flanged Polypropylene AODD Pump with Buna-N Nitrile Diaphragm is a reliable and efficient air-driven double diaphragm pump designed as a drop-in replacement for Wilden AODD pumps of equivalent make and size. Its asymmetrical spool design ensures efficient air system operations, making it ideal for handling large solids, slurries, and on/off liquid transfer tasks with excellent reliability. The pump features chemically resistant polypropylene construction, a displacement of 0.727 gal per cycle, and a maximum flow rate of 165 gpm, making it suitable for various industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

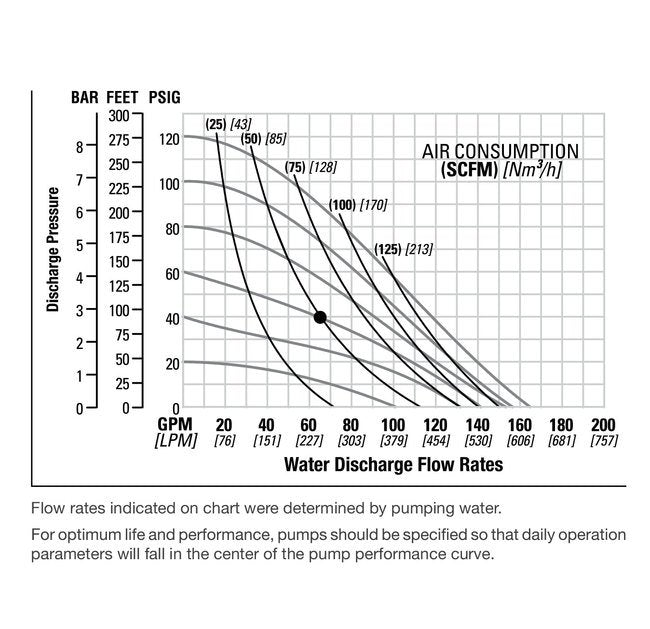

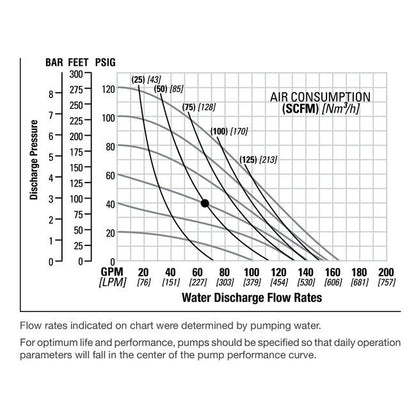

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Buna - N/ Nitrile
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Buna - N/ Nitrile
Specifications Displacement Per Cycle
0.727 gal | 2.75 lit
Specifications Elastomers
Viton Encapsulated, Buna - N/ Nitrile, Buna - N/ Nitrile
Specifications Fluid Inlet Size
2 Flanged in | 51 Flanged mm
Specifications Fluid Outlet Size
2 Flanged in | 51 Flanged mm
Specifications Height
32 Inch | 32 in | 805.18 mm
Specifications Length
32 Inch | 32 in | 0.8052 m | 805.18 mm
Specifications Max Flow Rate
165 gpm | 624.59 lpm
Specifications Moc
Polypropylene
Specifications Model
NPF50/PPPP/BN/BN/PTV/FL/B
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-12661
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
14 Inch | 14 in | 0.3531 m | 353.06 mm
