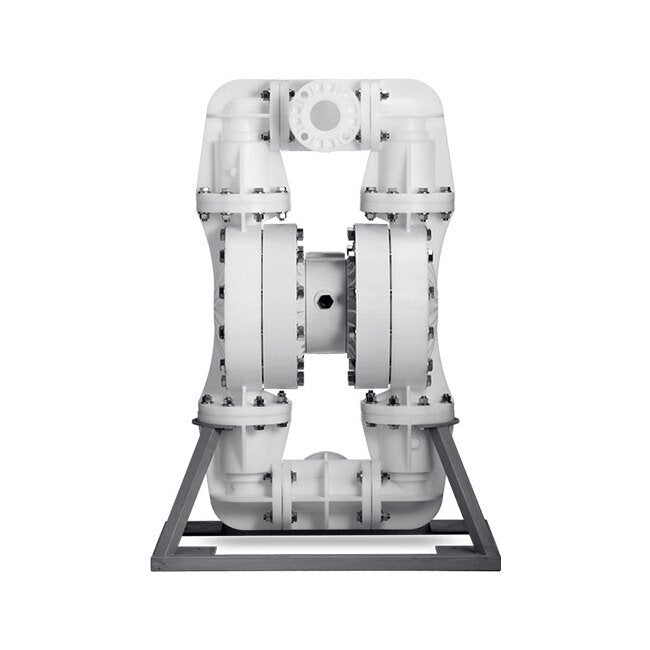

Nomad Pwr-Flo 3" Polypropylene AODD Pump with Santoprene Diaphragm
Nomad Pwr-Flo 3" Polypropylene AODD Pump with Santoprene Diaphragm
SKU:MAN-e39fe4
High-performance 3" Polypropylene AODD Pump with Santoprene Diaphragm - Ideal for large solids and slurries. Efficient and reliable for filling and batching applications.
Regular price
$1,699.99
Regular price
Sale price
$1,699.99
Unit price
per
Initiate Order
Nomad Pwr-Flo 3" Polypropylene AODD Pump with Santoprene Diaphragm
$1,699.99
Quantity: 1
Claim Your Seller Account
Nomad Pwr-Flo 3" Polypropylene AODD Pump with Santoprene Diaphragm
$1,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nomad Pwr-Flo 3" Polypropylene AODD Pump with Santoprene Diaphragm is a reliable and efficient drop-in replacement for Wilden AODD pumps. Designed for handling large solids and slurries, this pump features an asymmetrical spool design for optimal air system efficiency. Its polypropylene construction ensures chemical resistance, while the Santoprene diaphragm enhances durability. With a max flow rate of 232 gpm and solids handling capability of 0.5 in, this pump is ideal for filling and batching applications. The Viton-encapsulated elastomers and PTFE components further contribute to its reliability and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Viton® Encapsulated
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Santoprene® -UFI
Specifications Displacement Per Cycle
1.52 gal | 5.75 lit
Specifications Elastomers
Viton® Encapsulated, PTFE
Specifications Fluid Inlet Size
3 in | 76 mm
Specifications Fluid Outlet Size
3 Flange in | 76 Flange mm
Specifications Height
50 Inch | 50 in | 1.2776 m | 1277.62 mm
Specifications Length
36 Inch | 36 in | 0.9144 m | 914.40 mm
Specifications Max Flow Rate
232 gpm | 878.22 lpm
Specifications Model
NPF80/PPPP/SNF/TF/PTV/FL/B/W
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-120086-1
Specifications Solids Handling
0.5 in | 13 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
23 Inch | 23 in | 0.5842 m | 584.20 mm
