NOMAD PWR-FLO AODD Pump, 1" BSP, Stainless Steel with Santoprene Diaphragm
NOMAD PWR-FLO AODD Pump, 1" BSP, Stainless Steel with Santoprene Diaphragm
SKU:MAN-bbb7c1
High-performance stainless steel AODD pump with Santoprene diaphragm, ideal for handling solids and slurries efficiently.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
NOMAD PWR-FLO AODD Pump, 1" BSP, Stainless Steel with Santoprene Diaphragm
$699.99
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO AODD Pump, 1" BSP, Stainless Steel with Santoprene Diaphragm
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD PWR-FLO AODD Pump is a high-performance, drop-in replacement for Wilden AODD pumps. Constructed with stainless steel and a Santoprene diaphragm, it is designed to handle large solids and slurries efficiently. The unique PWR-FLO asymmetrical spool design ensures reliable on/off liquid transfer, making it ideal for filling and batching applications. With a maximum flow rate of 45 gpm and superior chemical resistance, this pump delivers exceptional performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

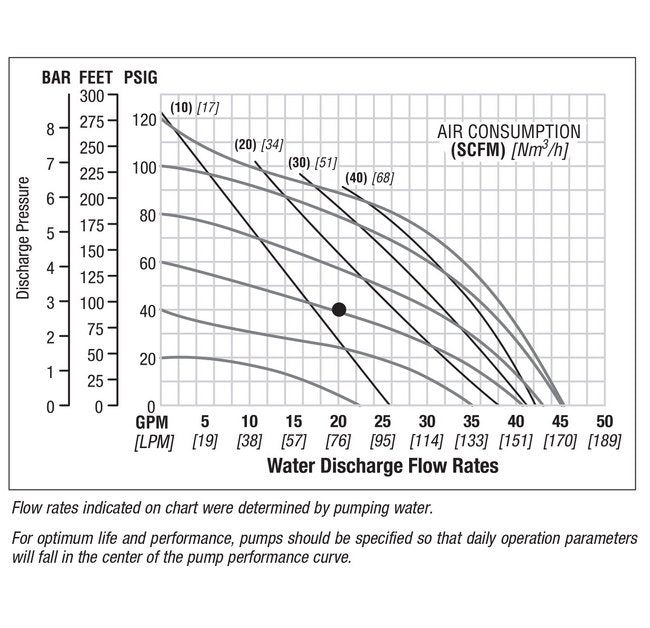

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Santoprene®
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Santoprene® - UFI
Specifications Displacement Per Cycle
0.091 gal | 0.34 lit
Specifications Elastomers
Santoprene, Santoprene®, Santoprene®
Specifications Fluid Inlet Size
1 BSP in | 25 BSP mm
Specifications Fluid Outlet Size
1 BSP in | 25 BSP mm
Specifications Height
11 Inch | 11 in | 279.40 mm
Specifications Length
11 Inch | 11 in | 0.2794 m | 279.40 mm
Specifications Max Flow Rate
45 gpm | 170.34 lpm
Specifications Moc
Stainless Steel
Specifications Model
NPF25/SPPP/SNF/SN/SSN/B/B
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
25-17663
Specifications Solids Handling
0.125 in | 3 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
8 Inch | 8 in | 0.2007 m | 200.66 mm
