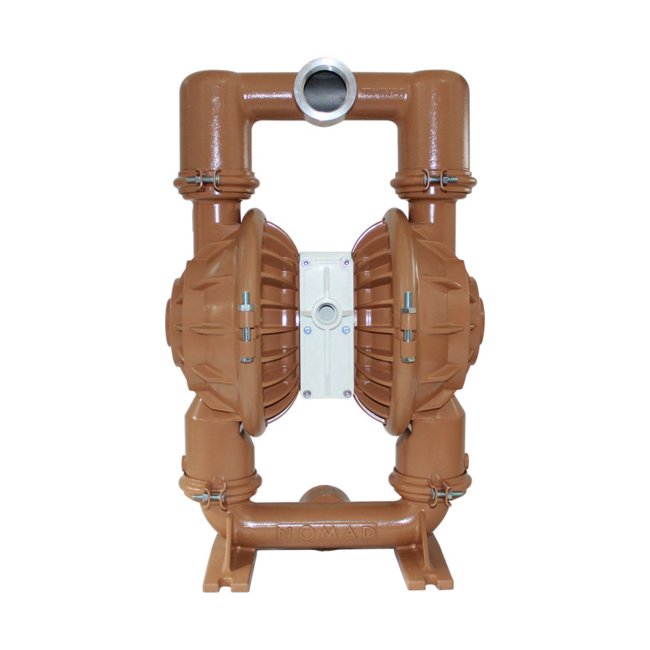

NOMAD PWR-FLO AODD Pump 2" BSP Ductile Iron w/ Nordel EPDM Diaphragm
NOMAD PWR-FLO AODD Pump 2" BSP Ductile Iron w/ Nordel EPDM Diaphragm
SKU:MAN-9d33c3
Reliable NOMAD PWR-FLO AODD Pump for large solids, slurries, and on/off liquid transfer applications. Ductile Iron with Nordel/EPDM diaphragm.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
NOMAD PWR-FLO AODD Pump 2" BSP Ductile Iron w/ Nordel EPDM Diaphragm
$2,999.99
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO AODD Pump 2" BSP Ductile Iron w/ Nordel EPDM Diaphragm
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD PWR-FLO AODD Pump is a robust drop-in replacement for Wilden AODD pumps, offering a reliable solution for handling large solids, slurries, and on/off liquid transfer applications. Constructed with durable Ductile Iron and Nordel/EPDM diaphragm, this pump features an efficient air system and anti-stalling design, ensuring optimal performance and excellent reliability. With a max flow rate of 164.7 gpm, 623.46 lpm, and compliance with industry standards, this pump is ideal for industrial and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

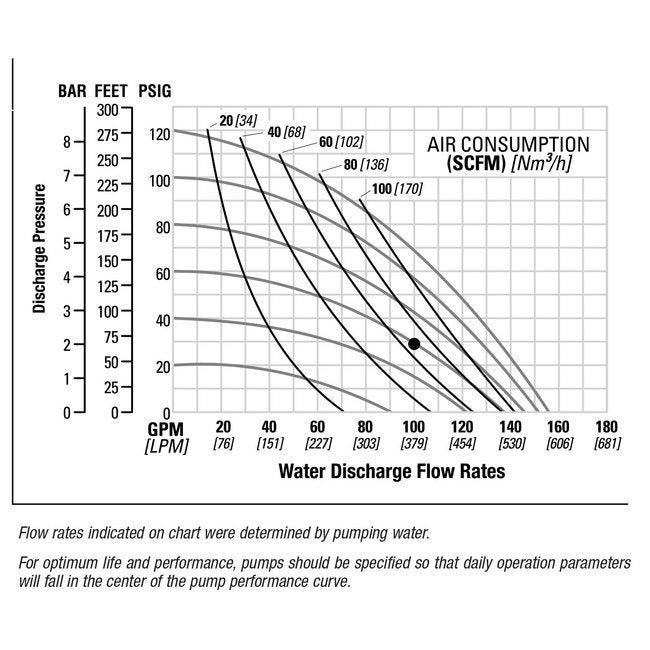

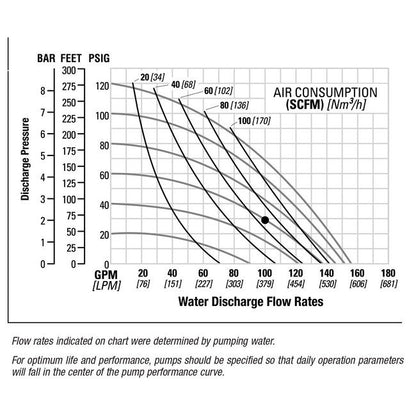

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Nordel/EPDM
Specifications Check Valve Seat
Nordel/EPDM
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Nordel/EPDM
Specifications Displacement Per Cycle
0.7 gal | 2.65 lit
Specifications Elastomers
Nordel/EPDM, Nordel/EPDM, Nordel/EPDM
Specifications Fluid Inlet Size
2 BSP in | 51 BSP mm
Specifications Fluid Outlet Size
2 BSP in | 51 BSP mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
26 Inch | 26 in | 0.6680 m | 668.02 mm
Specifications Max Flow Rate
164.7 gpm | 623.46 lpm
Specifications Moc
Ductile Iron
Specifications Model
NPF50/WWAA/NDU/ND/ND/B/C/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-511475
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Ductile Iron
Specifications Width
14 Inch | 14 in | 0.3429 m | 342.90 mm
