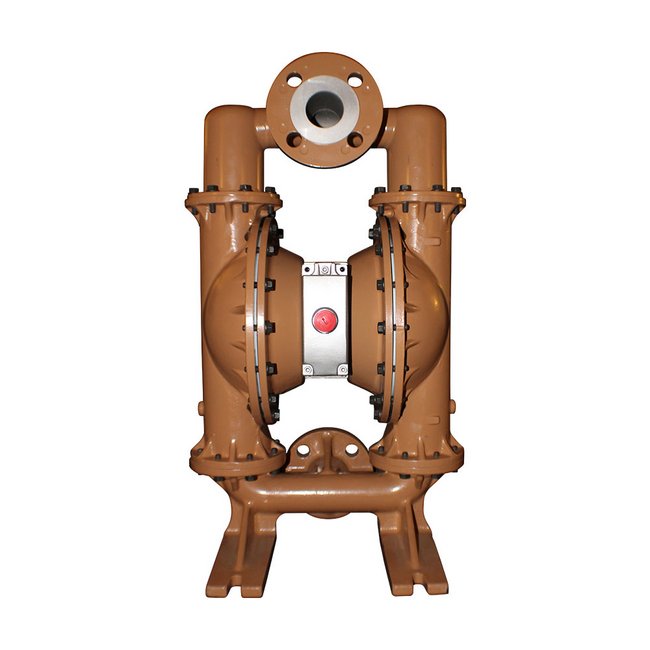

The NOMAD PWR-FLO AODD Pump features a durable ductile iron construction with a PTFE diaphragm backed by Neoprene for enhanced reliability. Designed as a drop-in replacement for Wilden AODD pumps, this pump excels in handling large solids, slurries, and on/off liquid transfer applications. With a maximum flow rate of 164 gpm, it offers efficient performance and durability. The polypropylene air valve and center section ensure chemical resistance, making it ideal for various industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

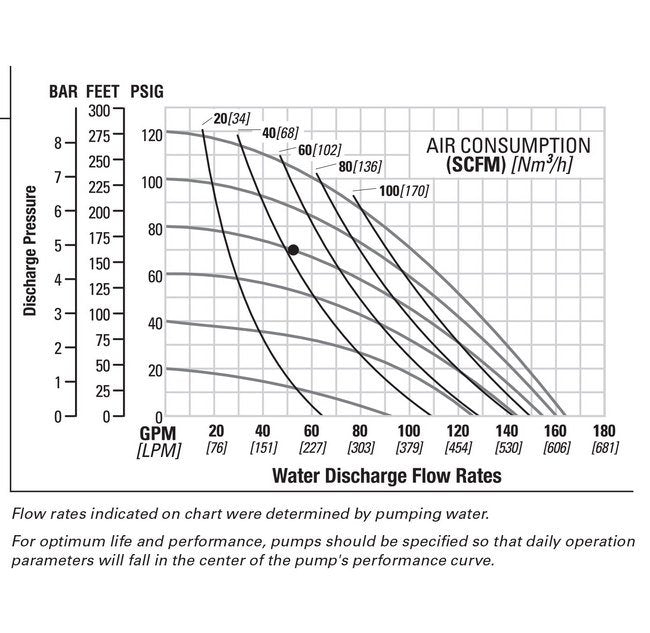

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
PTFE (with Neoprene back-up)
Specifications Check Valve Seat
Mild Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
PTFE (with Neoprene back-up)
Specifications Displacement Per Cycle
0.74 gal | 2.80 lit
Specifications Elastomers
PTFE, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
2 NPT in | 51 NPT mm
Specifications Fluid Outlet Size
2 NPT in | 51 NPT mm
Specifications Height
30 Inch | 30 in | 759.46 mm
Specifications Length
17 Inch | 17 in | 0.4394 m | 439.42 mm
Specifications Max Flow Rate
164 gpm | 620.81 lpm
Specifications Moc
Ductile Iron
Specifications Model
NPF50/WWAA/TF/TF/MTF/N/B/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-51141
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Ductile Iron
Specifications Width
13 Inch | 13 in | 0.3404 m | 340.36 mm
