NOMAD PWR-FLO AODD Pump Aluminum with Hytrel Diaphragm, 2" BSP
NOMAD PWR-FLO AODD Pump Aluminum with Hytrel Diaphragm, 2" BSP
SKU:MAN-542016
Efficiently handle large solids and slurries with the NOMAD PWR-FLO AODD Pump Aluminum with Hytrel Diaphragm, 2" BSP.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
NOMAD PWR-FLO AODD Pump Aluminum with Hytrel Diaphragm, 2" BSP
$1,899.99
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO AODD Pump Aluminum with Hytrel Diaphragm, 2" BSP
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

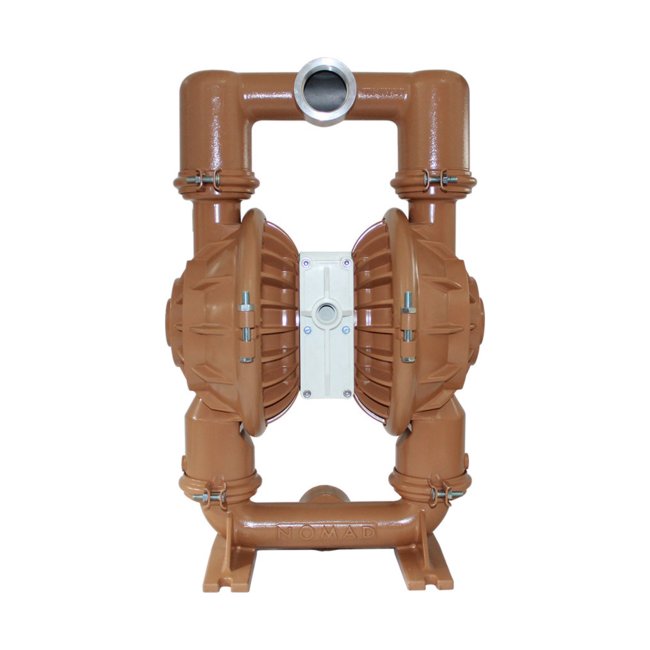

The NOMAD PWR-FLO AODD Pump is a high-performance solution designed as a drop-in replacement for Wilden® AODD pumps of equivalent make and size. Its air-driven double diaphragm construction is ideal for handling large solids and slurries with ease. Featuring the innovative PWR-FLO asymmetrical spool design (ASD), this pump ensures an efficient air system for reliable on/off liquid transfer in filling and batching applications. Crafted with a chemically resistant polypropylene air valve and center section, and equipped with an anti-stalling design, this pump delivers exceptional performance and durability.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

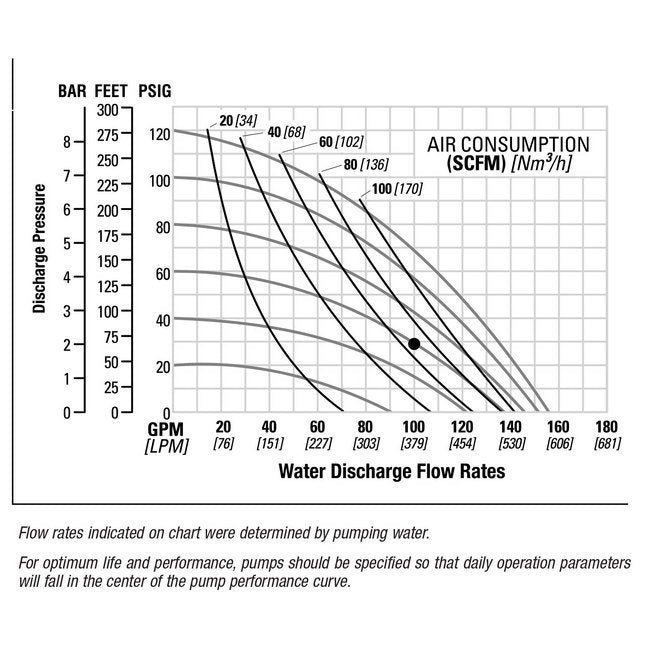

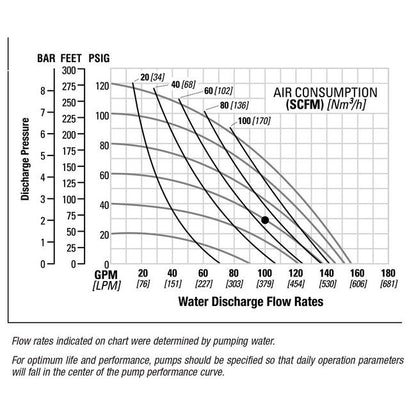

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Hytrel®
Specifications Check Valve Seat
Hytrel
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Hytrel®
Specifications Displacement Per Cycle
0.7 gal | 2.65 lit
Specifications Elastomers
Hytrel, Hytrel®, Hytrel®
Specifications Fluid Inlet Size
2 BSP in | 51 BSP mm
Specifications Fluid Outlet Size
2 BSP in | 51 BSP mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
26 Inch | 26 in | 0.6680 m | 668.02 mm
Specifications Max Flow Rate
164.7 gpm | 623.46 lpm
Specifications Moc
Aluminum
Specifications Model
NPF50/AAPP/FG/FG/FG/B/C
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-25664
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Aluminum
Specifications Width
14 Inch | 14 in | 0.3429 m | 342.90 mm
