The NOMAD PWR-FLO AODD Pump is a robust solution designed as a drop-in replacement for Wilden AODD pumps of equivalent make and size. Built with an aluminum body and a Polyurethane UFI diaphragm, this pump excels at handling large solids and slurries efficiently. It features an asymmetrical spool design for optimal air system performance, ensuring reliable on/off liquid transfer for various applications such as filling and batching. With chemically resistant polypropylene components, this pump guarantees durability and longevity in demanding industrial environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

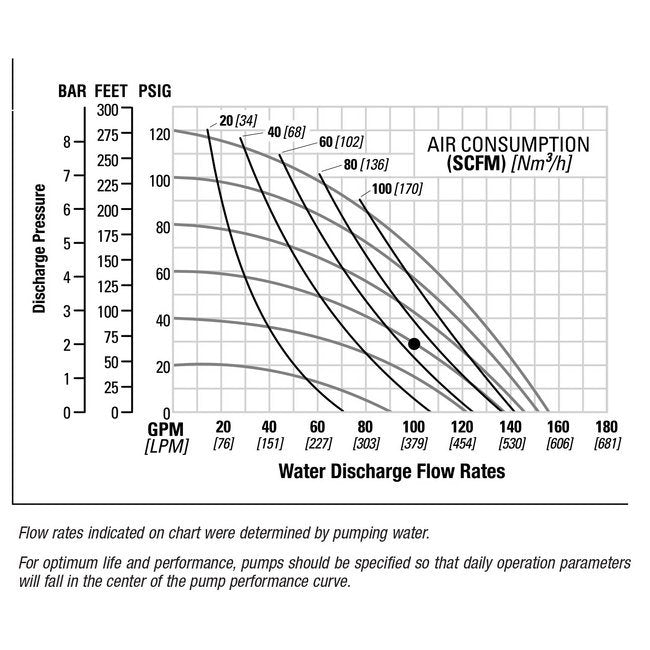

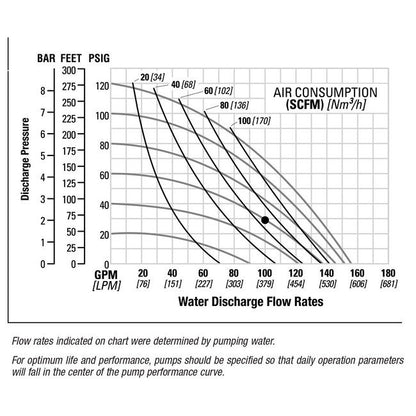

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Polyurethane
Specifications Check Valve Seat
Polyurethane
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Polyurethane UFI
Specifications Displacement Per Cycle
0.7 gal | 2.65 lit
Specifications Elastomers
Polyurethane, Polyurethane, Polyurethane
Specifications Fluid Inlet Size
2 BSP in | 51 BSP mm
Specifications Fluid Outlet Size
2 BSP in | 51 BSP mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
26 Inch | 26 in | 0.6680 m | 668.02 mm
Specifications Max Flow Rate
164.7 gpm | 623.46 lpm
Specifications Moc
Aluminum
Specifications Model
NPF50/AAAA/PUF/PU/PU/B/C/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-25473
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Aluminum
Specifications Width
14 Inch | 14 in | 0.3429 m | 342.90 mm
