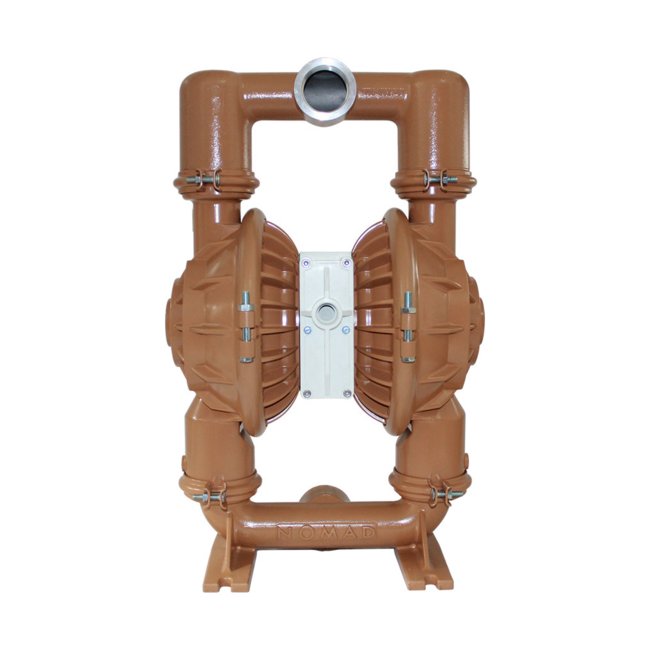

NOMAD PWR-FLO AODD Pump with Hytrel Diaphragm, Aluminum Construction, 2" BSP
NOMAD PWR-FLO AODD Pump with Hytrel Diaphragm, Aluminum Construction, 2" BSP
SKU:MAN-6bb5ec
Upgrade to the NOMAD PWR-FLO AODD Pump for unparalleled reliability and efficiency in fluid transfer. With aluminum construction, Hytrel diaphragm, and 164.7 gpm flow rate, it's a game-changer for industrial pumping needs.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
NOMAD PWR-FLO AODD Pump with Hytrel Diaphragm, Aluminum Construction, 2" BSP
$899.99
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO AODD Pump with Hytrel Diaphragm, Aluminum Construction, 2" BSP
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD PWR-FLO AODD Pump with Hytrel Diaphragm offers a seamless replacement for Wilden AODD pumps, boasting a robust aluminum construction and efficient air system for handling large solids and slurries. With an anti-stalling design and chemically resistant polypropylene components, this pump ensures exceptional reliability in liquid transfer applications. Featuring a Hytrel diaphragm and check valve seat, this pump delivers a max flow rate of 164.7 gpm, making it ideal for filling, batching, and industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

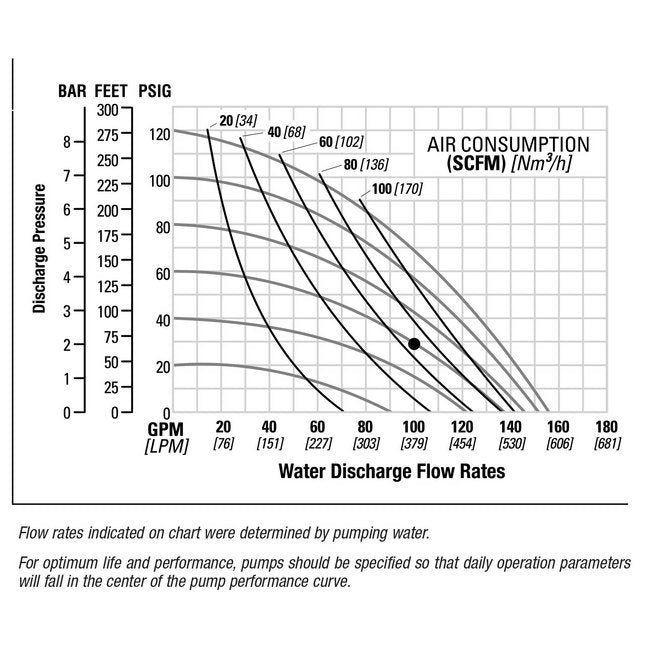

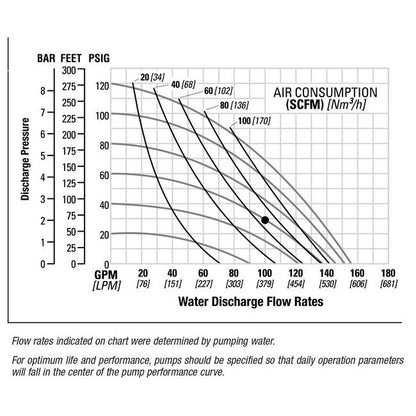

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Hytrel®
Specifications Check Valve Seat
Hytrel
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Hytrel®
Specifications Displacement Per Cycle
0.7 gal | 2.65 lit
Specifications Elastomers
Hytrel, Hytrel®, Hytrel®
Specifications Fluid Inlet Size
2 BSP in | 51 BSP mm
Specifications Fluid Outlet Size
2 BSP in | 51 BSP mm
Specifications Height
26 Inch | 26 in | 668.02 mm
Specifications Length
26 Inch | 26 in | 0.6680 m | 668.02 mm
Specifications Max Flow Rate
164.7 gpm | 623.46 lpm
Specifications Moc
Aluminum
Specifications Model
NPF50/AAAA/FG/FG/FG/B/C/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-25464
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Aluminum
Specifications Width
14 Inch | 14 in | 0.3429 m | 342.90 mm
