NOMAD PWR-FLO Stainless Steel AODD Pump with PTFE-UFI Santoprene Diaphragm
NOMAD PWR-FLO Stainless Steel AODD Pump with PTFE-UFI Santoprene Diaphragm
SKU:MAN-fef07e
Reliable NOMAD Stainless Steel AODD Pump for handling solids and slurries efficiently. PTFE-UFI Santoprene diaphragm ensures durability.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
NOMAD PWR-FLO Stainless Steel AODD Pump with PTFE-UFI Santoprene Diaphragm
$799.99
Quantity: 1
Claim Your Seller Account
NOMAD PWR-FLO Stainless Steel AODD Pump with PTFE-UFI Santoprene Diaphragm
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD PWR-FLO Stainless Steel AODD Pump is a reliable drop-in replacement for Wilden AODD pumps, featuring an efficient air system for handling large solids and slurries. With a chemically resistant polypropylene air valve and center section, this pump ensures excellent reliability in liquid transfer applications. The PWR-FLO asymmetrical spool design enhances performance, while the PTFE-UFI Santoprene diaphragm provides durability. Ideal for filling and batching tasks, this pump offers a maximum flow rate of 56 gpm, meeting the highest standards of quality and efficiency.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

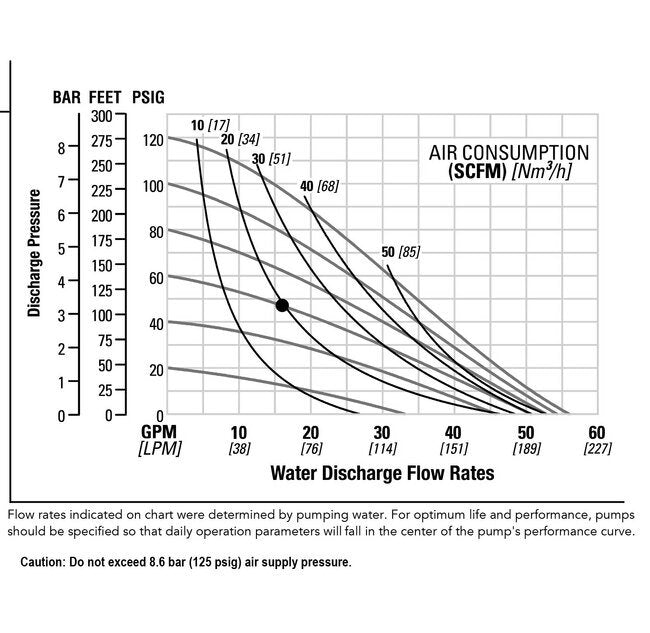

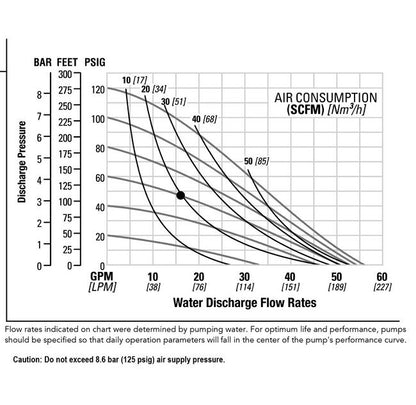

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
PTFE - UFI Santoprene® back up
Specifications Displacement Per Cycle
0.08 gal | 0.30 lit
Specifications Elastomers
PTFE, PTFE
Specifications Fluid Inlet Size
1 in | 25 mm
Specifications Fluid Outlet Size
1 Flanged ANSI in | 25 Flanged ANSI mm
Specifications Height
14 Inch | 14 in | 342.90 mm
Specifications Length
15 Inch | 15 in | 0.3734 m | 373.38 mm
Specifications Max Flow Rate
56 gpm | 211.98 lpm
Specifications Model
NPF250/SPPP/TFF/TF/STF/FLA/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
250-18662-1
Specifications Solids Handling
0.08 in | 2 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
11 Inch | 11 in | 0.2870 m | 287.02 mm
