NOMAD® 1 1/2" BSP PWR-FLO™ AODD Pump - Aluminum with Hytrel® Diaphragm

NOMAD® 1 1/2" BSP PWR-FLO™ AODD Pump - Aluminum with Hytrel® Diaphragm

MAN-26a4ee

Powerful NOMAD® AODD Pump with Aluminum construction, Hytrel® Diaphragm, and efficient design for reliable liquid handling.

$1,199.99
$1,199.99
Sale

Initiate Order

NOMAD® 1 1/2" BSP PWR-FLO™ AODD Pump - Aluminum with Hytrel® Diaphragm

NOMAD® 1 1/2" BSP PWR-FLO™ AODD Pump - Aluminum with Hytrel® Diaphragm

$1,199.99

Quantity: 1

Claim Your Seller Account

NOMAD® 1 1/2" BSP PWR-FLO™ AODD Pump - Aluminum with Hytrel® Diaphragm

NOMAD® 1 1/2" BSP PWR-FLO™ AODD Pump - Aluminum with Hytrel® Diaphragm

$1,199.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The NOMAD® 1 1/2" BSP PWR-FLO™ AODD Pump with Aluminum construction and Hytrel® Diaphragm is a powerful and reliable solution for handling large solids and slurries. Featuring an asymmetrical spool design for efficient air system operation and anti-stalling capabilities, this pump ensures excellent reliability for on/off liquid transfer applications like filling and batching. With chemically resistant polypropylene components and a robust design, this pump is a drop-in replacement for Wilden® AODD pumps, offering a maximum flow rate of 76 gpm. Sized at 17" x 12" x 17" and compliant with industry standards, it's a versatile choice for industrial applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

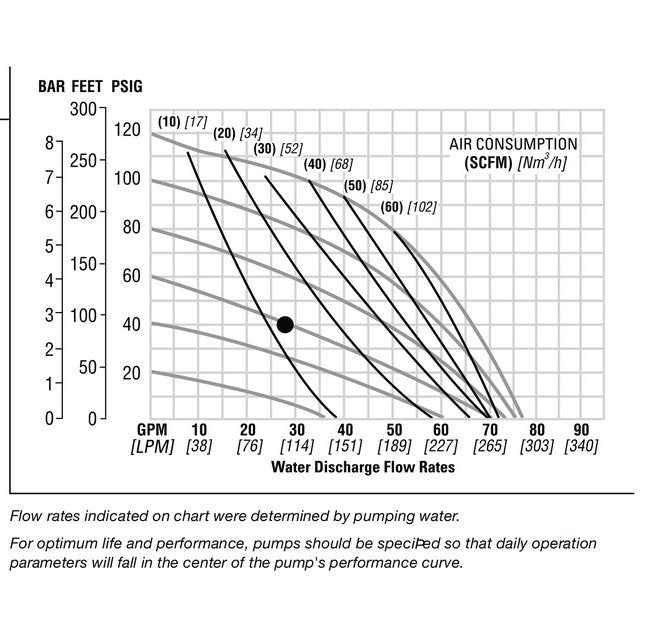

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO™ asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Hytrel®
Specifications Check Valve Seat
Hytrel
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Hytrel®
Specifications Displacement Per Cycle
0.26 gal | 0.98 lit
Specifications Elastomers
Hytrel, Hytrel®, Hytrel®
Specifications Fluid Inlet Size
1.5 BSP in | 38 BSP mm
Specifications Fluid Outlet Size
1.5 BSP in | 38 BSP mm
Specifications Height
17 Inch | 17 in | 429.26 mm
Specifications Length
17 Inch | 17 in | 0.4293 m | 429.26 mm
Specifications Max Flow Rate
76 gpm | 287.69 lpm
Specifications Moc
Aluminum
Specifications Model
NPF40/AAPP/FG/FG/FG/B/C
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
40-25664
Specifications Solids Handling
0.1875 in | 5 mm
Specifications Wetted Moc
Aluminum
Specifications Width
12 Inch | 12 in | 0.3073 m | 307.34 mm
