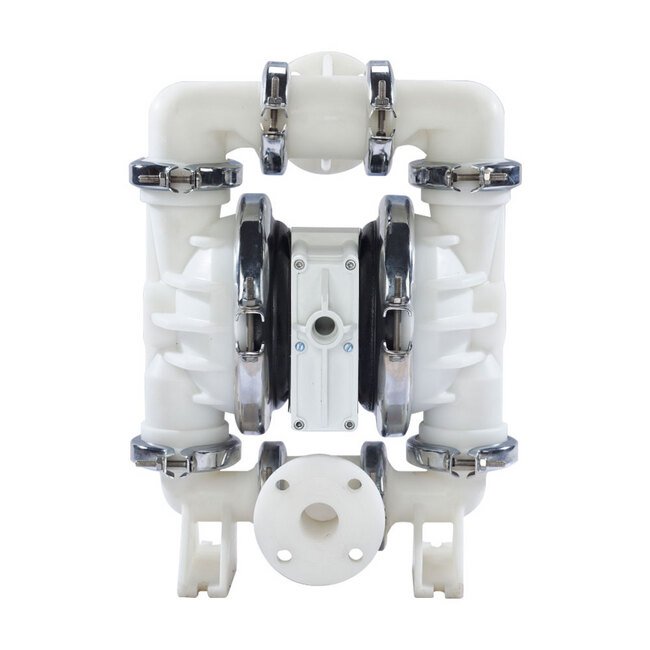

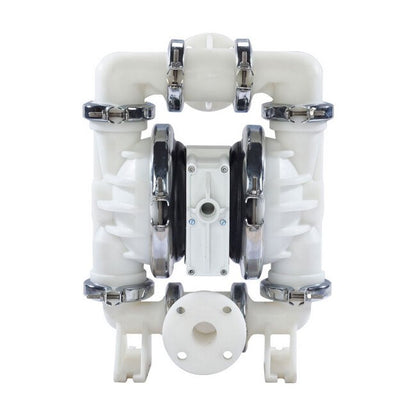

NOMAD® 1 1/2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm
NOMAD® 1 1/2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm
SKU:MAN-5d7d2f
Efficient NOMAD® AODD Pump for reliable liquid transfer with polypropylene construction and Hytrel® diaphragm.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
NOMAD® 1 1/2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm
$799.99
Quantity: 1
Claim Your Seller Account
NOMAD® 1 1/2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The NOMAD® 1 1/2" Polypropylene Pwr-Flo™ AODD Pump with Hytrel® Diaphragm is a reliable and efficient air-driven double diaphragm pump designed to handle large solids and slurries. Featuring an asymmetrical spool design for optimal air system efficiency, this pump ensures excellent reliability in on/off liquid transfer applications like filling and batching. The chemically resistant polypropylene construction of the air valve and center section, along with the Hytrel® diaphragm material, guarantee durability and performance in demanding industrial environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

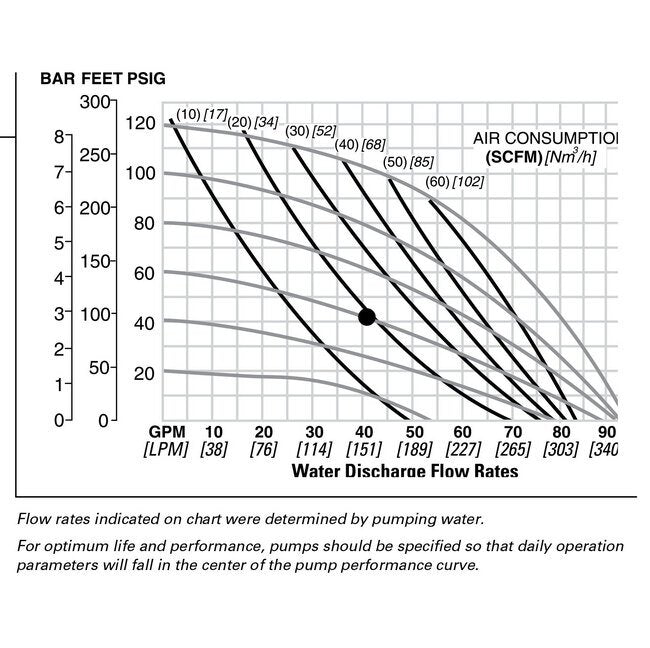

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Hytrel®
Specifications Displacement Per Cycle
0.314 gal | 1.19 lit
Specifications Elastomers
Hytrel®, Hytrel®
Specifications Fluid Inlet Size
1.5 in | 38 mm
Specifications Fluid Outlet Size
1.5 Flange in | 38 Flange mm
Specifications Height
21 Inch | 21 in | 528.32 mm
Specifications Length
21 Inch | 21 in | 0.5283 m | 528.32 mm
Specifications Max Flow Rate
92 gpm | 348.26 lpm
Specifications Model
NPF40/PAPP/FG/FG/PFG/FL/C
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
40-22664-1
Specifications Solids Handling
0.1875 in | 5 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
11 Inch | 11 in | 0.2845 m | 284.48 mm
