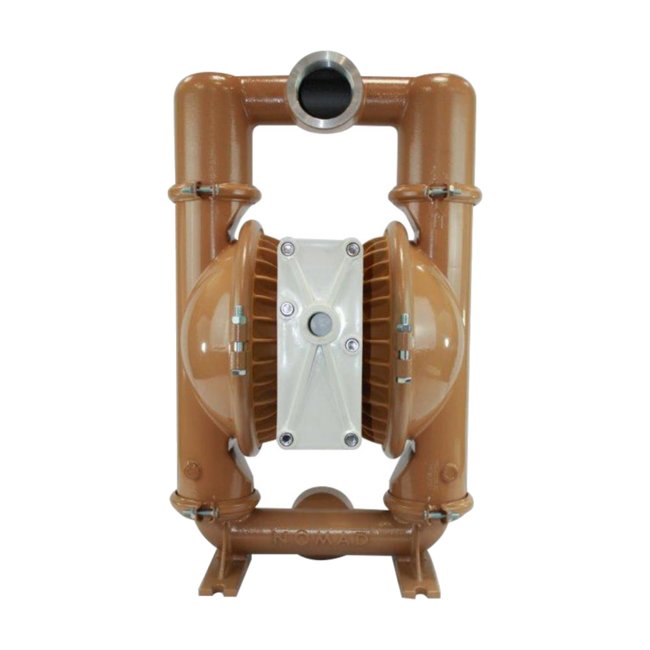

The NOMAD® 3" BSP PWR-FLO™ AODD Pump is a versatile and reliable pump designed as a drop-in replacement for Wilden® AODD pumps. Its air-driven double diaphragm can handle large solids and slurries efficiently. With an asymmetrical spool design for optimal air system performance, this pump ensures excellent reliability in on/off liquid transfer operations. Constructed with chemically resistant polypropylene components and PTFE diaphragms (with Neoprene back-up), it excels in filling and batching applications. With a maximum flow rate of 232 gpm and superior solids handling capability, this pump is ideal for demanding industrial environments.
Product Specifications
Curves 0

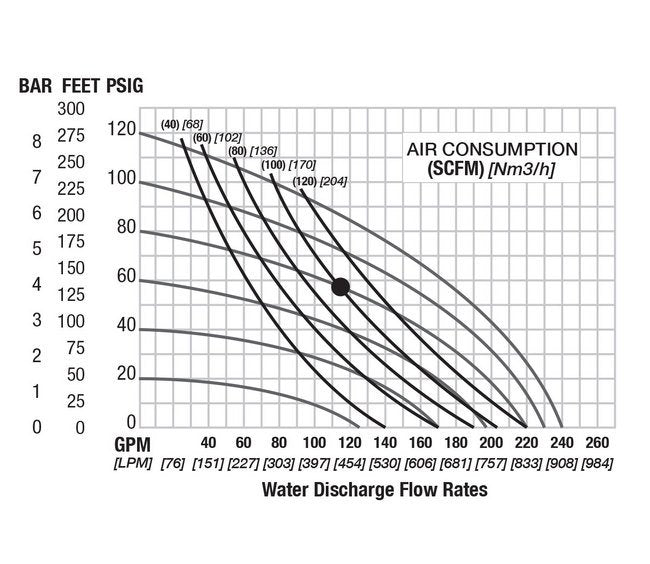

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
PTFE (with Neoprene back-up)
Specifications Check Valve Seat
Aluminum
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
PTFE (with Neoprene back-up)
Specifications Displacement Per Cycle
1.49 gal | 5.64 lit
Specifications Elastomers
PTFE, PTFE (with Neoprene back-up), PTFE (with Neoprene back-up)
Specifications Fluid Inlet Size
3 BSP in | 76 BSP mm
Specifications Fluid Outlet Size
3 BSP in | 76 BSP mm
Specifications Height
32 Inch | 32 in | 822.96 mm
Specifications Length
32 Inch | 32 in | 0.8230 m | 822.96 mm
Specifications Max Flow Rate
232 gpm | 878.22 lpm
Specifications Moc
Aluminum
Specifications Model
NPF80/AAAA/TF/TF/ATF/B/C/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
80-2551
Specifications Solids Handling
0.375 in | 10 mm
Specifications Wetted Moc
Aluminum
Specifications Width
21 Inch | 21 in | 0.5232 m | 523.24 mm
