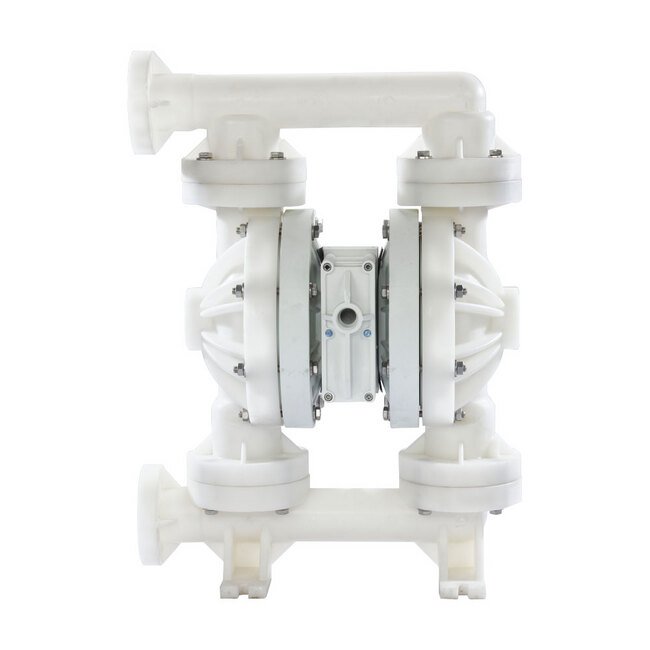

The NOMAD® PWR-FLO⢠2" Polypropylene Pwr-Flo⢠AODD Pump with Hytrel® UFI Diaphragm offers a high-performance solution for demanding industrial applications. Designed as a drop-in replacement for Wilden® AODD pumps, this air-driven pump efficiently handles large solids and slurries. The innovative PWR-FLO⢠asymmetrical spool design ensures reliable on/off liquid transfer, making it ideal for filling and batching tasks. With a chemically resistant polypropylene air valve and center section, this pump guarantees durability and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

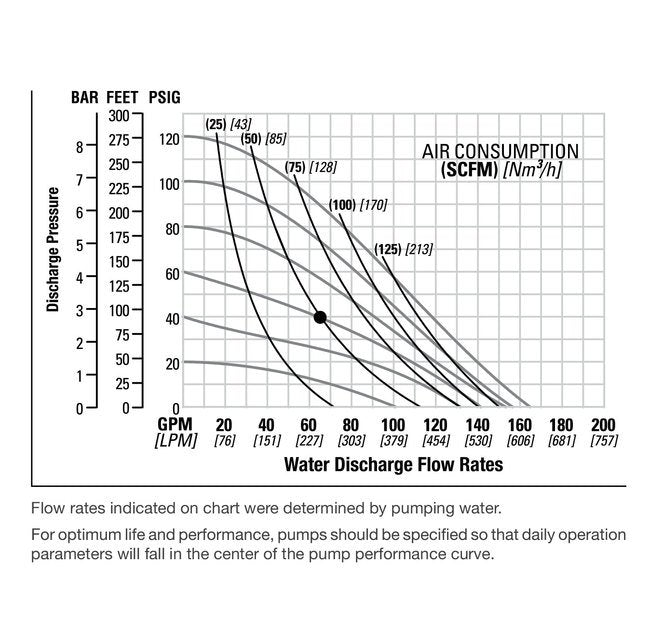

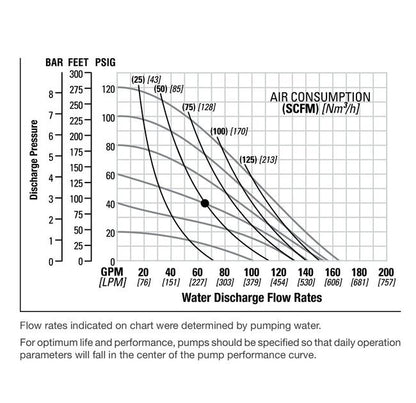

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Polypropylene
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Hytrel® UFI
Specifications Displacement Per Cycle
0.727 gal | 2.75 lit
Specifications Elastomers
Hytrel®, PTFE
Specifications Fluid Inlet Size
2 in | 51 mm
Specifications Fluid Outlet Size
2 Flange in | 51 Flange mm
Specifications Height
32 Inch | 32 in | 805.18 mm
Specifications Length
32 Inch | 32 in | 0.8052 m | 805.18 mm
Specifications Max Flow Rate
165 gpm | 624.59 lpm
Specifications Model
NPF50/PPPP/FGF/TF/PFG/FL/B
Specifications Non Wetted Material
Polypropylene
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
50-12670-1
Specifications Solids Handling
0.25 in | 6 mm
Specifications Wetted Moc
Polypropylene
Specifications Width
14 Inch | 14 in | 0.3531 m | 353.06 mm
