Non-Hazardous Purge NEMA 12 Cabinet Cooler System - 275 Btu/hr

Name: Non-Hazardous Purge NEMA 12 Cabinet Cooler System - 275 Btu/hr
Brand: Exair LLC
SKU: NEM-1151e8
Price: 299.99 USD
Availability: OutOfStock

SKU:NEM-1151e8

Efficiently cool and purge electronic control panels with the Non-Hazardous Purge NEMA 12 Cabinet Cooler - 275 Btu/hr. Ideal for diverse applications, ensuring equipment longevity and performance.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

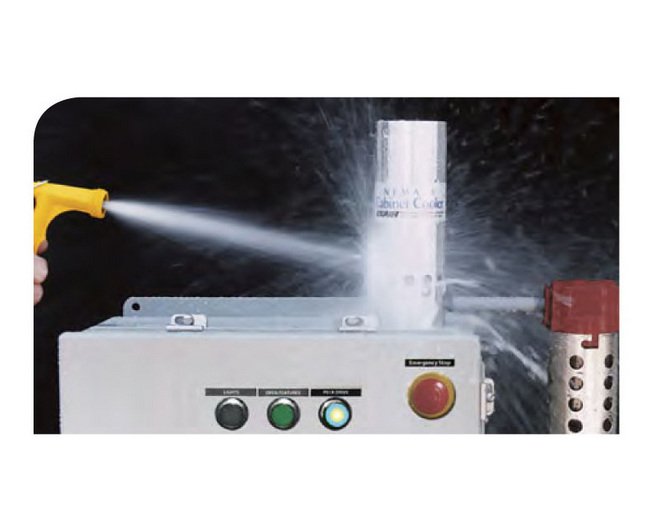

The Non-Hazardous Purge NEMA 12 Cabinet Cooler System offers a reliable, low-cost solution to cool and purge electronic control panels. Utilizing a vortex tube for efficient cooling, this system requires no maintenance with its innovative design featuring no moving parts. Easy installation via standard electrical knockouts, it ensures NEMA 12 (IP54) compliance, safeguarding equipment in various applications like food service, laser housings, and CNC systems. With a cooling capacity of 275 Btu/hr, this system stabilizes enclosure temperature and humidity, preserving equipment integrity and minimizing downtime.

Product Specifications

Specifications Capacity

275 Btu/hr | 69 kcal/h

Specifications Note

Non-Hazardous Purge Cabinet Cooler Systems are ideal for dirty areas where contaminants might normally pass through small holes or conduits. Under normal conditions, the NHP Cabinet Cooler Systems provide a slight positive pressure in the enclosure by passing 1 SCFM (28 SLPM) of air through the cooler, when the solenoid valve is in the closed position. When the thermostat detects high temperature, it energizes the solenoid valve to pass full line pressure to the Cabinet Cooler, giving it full cooling capability.

Specifications Sound Level

59 dBA

Non-Hazardous Purge NEMA 12 Cabinet Cooler System - 275 Btu/hr
