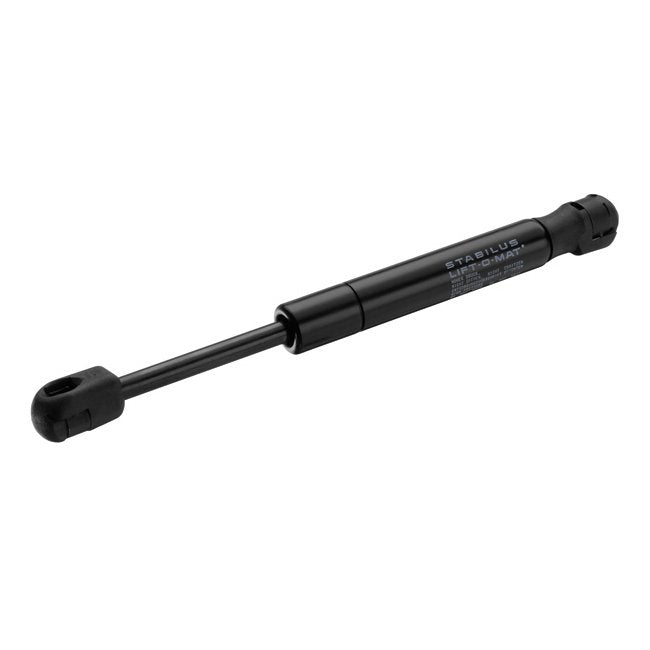

Non-Locking Gas Springs - Lift-O-Mat Gas Springs
Non-Locking Gas Springs - Lift-O-Mat Gas Springs
SKU:GAS-e56747
Precision-controlled Non-Locking Gas Springs for varied industrial applications. Durable, cost-effective, and versatile. Ideal for doors, lids, and hatches.
Regular price
$75.99
Regular price
Sale price
$75.99
Unit price
per
Initiate Order
Non-Locking Gas Springs - Lift-O-Mat Gas Springs
$75.99
Quantity: 1
Claim Your Seller Account
Non-Locking Gas Springs - Lift-O-Mat Gas Springs
$75.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Non-Locking Gas Springs - Lift-O-Mat Gas Springs are engineered to deliver precise and controlled motion for various applications. Crafted from durable materials such as low carbon or stainless steel, these gas springs offer a wide range of sizes and forces to suit your needs, with extended lengths ranging from 7.68" to 34.84" and forces up to 1150 Newtons (258 lbs). Ideal for lifting, lowering, and supporting operations in doors, lids, hatches, and furniture, these gas springs are maintenance-free, easy to install, and cost-effective. With different end fittings and mounting options available, they provide a versatile and space-saving solution for industries like medical, transportation, and machine construction.
Product Specifications
Specifications Compressed Length Mm
165
Specifications Compressed Length Mm Range
151-200
Specifications End Fitting
Composite Ball and Socket
Specifications Extended Length Mm
245
Specifications Extended Length Mm Range
201-250
Specifications Notes
Lift-O-Mat gas springs are ideal in applications that require lifting, lowering, moving, supporting, and adjusting. The combination of weight compensation and force support offer the perfect solution for lids, hatches, and doors. | We provide design assistance using our simulation program to help you design the right gas spring for your application. We can offer guidance in all areas, from improvements of existing products to completely new product development. Mounting points and h
Specifications Optional Accessories
Ball Studs, Brackets
Specifications Output Force Newtons
500
Specifications Output Force Newtons Range
451-500
Specifications Product Guides
Gas Spring's Guides
Specifications Rod Diameter Mm
8
Specifications Rod Finish
NiSlide
Specifications Travelstroke Mm
80
Specifications Travelstroke Range
76-100
Specifications Tube Diameter Mm
18
Specifications Tube Finish
Black Powder Coat
