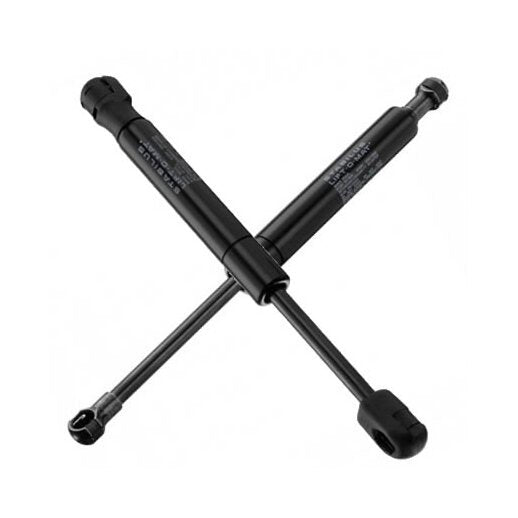

Non-Locking Gas Springs - Lift-O-Mat Gas Springs
Non-Locking Gas Springs - Lift-O-Mat Gas Springs
SKU:GAS-708adf
Lift-O-Mat Non-Locking Gas Springs offer controlled motion and are perfect for doors, lids, hatches, and furniture applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

Experience precise and controlled motion with our Lift-O-Mat Non-Locking Gas Springs. Ideal for lifting, lowering, and supporting applications, these maintenance-free gas springs are crafted from low carbon steel or stainless steel. Available in a range of sizes, forces, and travel lengths, with versatile end fittings for easy installation. Perfect for doors, lids, hatches, and furniture in medical, transportation, and machine construction industries.
Product Specifications
Specifications Compressed Length Mm
435
Specifications Compressed Length Mm Range
401-450
Specifications End Fitting
Composite Ball and Socket
Specifications Extended Length Mm
785
Specifications Extended Length Mm Range
751-800
Specifications Notes
Lift-O-Mat gas springs are ideal in applications that require lifting, lowering, moving, supporting, and adjusting. The combination of weight compensation and force support offer the perfect solution for lids, hatches, and doors. | We provide design assistance using our simulation program to help you design the right gas spring for your application. We can offer guidance in all areas, from improvements of existing products to completely new product development. Mounting points and h
Specifications Optional Accessories
Ball Studs, Brackets
Specifications Output Force Newtons
600
Specifications Output Force Newtons Range
551-600
Specifications Product Guides
Gas Spring's Guides
Specifications Rod Diameter Mm
10
Specifications Rod Finish
NiSlide
Specifications Travelstroke Mm
350
Specifications Travelstroke Range
326-350
Specifications Tube Diameter Mm
22
Specifications Tube Finish
Black Powder Coat
