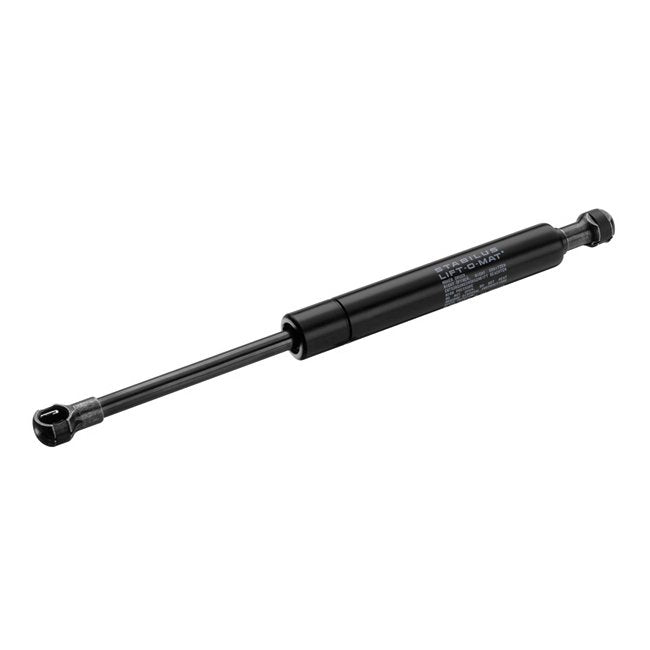

Non-Locking Gas Springs - Lift-O-Mat Gas Springs
Non-Locking Gas Springs - Lift-O-Mat Gas Springs
SKU:GAS-e08272
Controlled motion gas springs for lifting and lowering applications, available in various sizes and forces for versatile usage.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Non-Locking Gas Springs - Lift-O-Mat Gas Springs
$69.99
Quantity: 1
Claim Your Seller Account
Non-Locking Gas Springs - Lift-O-Mat Gas Springs
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your lifting and lowering applications with our premium Non-Locking Lift-O-Mat gas springs. Easy to install and maintenance-free, these gas springs offer controlled motion from 7.68" to 34.84" lengths and forces ranging from 50 to 1150 Newtons. Crafted from low carbon or stainless steel, with versatile end fittings for various mounting needs. Ideal for doors, lids, hatches, and furniture in medical, transportation, and machine construction industries.
Product Specifications
Specifications Alternate Pn
FAN22B
Specifications Compressed Length Mm
409
Specifications Compressed Length Mm Range
401-450
Specifications End Fitting
Metal Ball and Socket
Specifications Extended Length Mm
669
Specifications Extended Length Mm Range
651-700
Specifications Notes
Lift-O-Mat gas springs are ideal in applications that require lifting, lowering, moving, supporting, and adjusting. The combination of weight compensation and force support offer the perfect solution for lids, hatches, and doors. | We provide design assistance using our simulation program to help you design the right gas spring for your application. We can offer guidance in all areas, from improvements of existing products to completely new product development. Mounting points and h
Specifications Output Force Newtons
300
Specifications Output Force Newtons Range
251-300
Specifications Product Guides
Gas Spring's Guides
Specifications Rod Diameter Mm
10
Specifications Rod Finish
NiSlide
Specifications Travelstroke Mm
260
Specifications Travelstroke Range
251-275
Specifications Tube Diameter Mm
22
Specifications Tube Finish
Black Powder Coat
