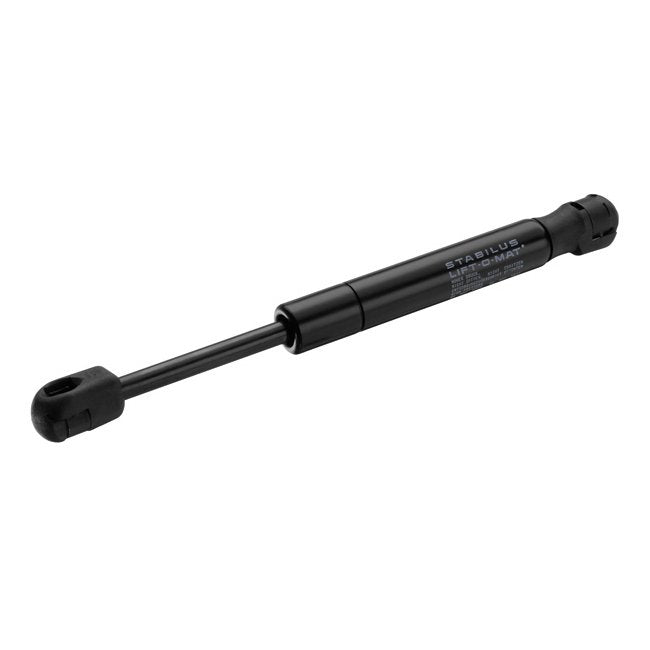

Non-Locking Gas Springs - Lift-O-Mat Gas Springs
Non-Locking Gas Springs - Lift-O-Mat Gas Springs
SKU:GAS-019653
Effortlessly lift and lower loads with our versatile Non-Locking Lift-O-Mat Gas Springs. Sizes, forces, and travel lengths to suit various applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Non-Locking Gas Springs - Lift-O-Mat Gas Springs
$69.99
Quantity: 1
Claim Your Seller Account
Non-Locking Gas Springs - Lift-O-Mat Gas Springs
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your lifting and lowering applications with our Non-Locking Lift-O-Mat Gas Springs. These gas springs deliver controlled motion, easy installation, and maintenance-free operation. With a wide range of sizes, forces, and travel lengths, featuring extended lengths from 7.68" to 34.84", forces from 50 Newtons to 1150 Newtons, and various end fittings with mounting hardware options for versatility. Manufactured from low carbon or stainless steel, these gas springs are ideal for doors, lids, hatches, and furniture applications in medical, transportation, and machine construction industries.
Product Specifications
Specifications Alternate Pn
FMR114
Specifications Compressed Length Mm
215
Specifications Compressed Length Mm Range
201-250
Specifications End Fitting
Composite Ball and Socket
Specifications Extended Length Mm
306
Specifications Extended Length Mm Range
301-350
Specifications Notes
Lift-O-Mat gas springs are ideal in applications that require lifting, lowering, moving, supporting, and adjusting. The combination of weight compensation and force support offer the perfect solution for lids, hatches, and doors. | We provide design assistance using our simulation program to help you design the right gas spring for your application. We can offer guidance in all areas, from improvements of existing products to completely new product development. Mounting points and h
Specifications Output Force Newtons
140
Specifications Output Force Newtons Range
101-150
Specifications Product Guides
Gas Spring's Guides
Specifications Rod Diameter Mm
8
Specifications Rod Finish
NiSlide
Specifications Travelstroke Mm
91
Specifications Travelstroke Range
76-100
Specifications Tube Diameter Mm
18
Specifications Tube Finish
Black Powder Coat
