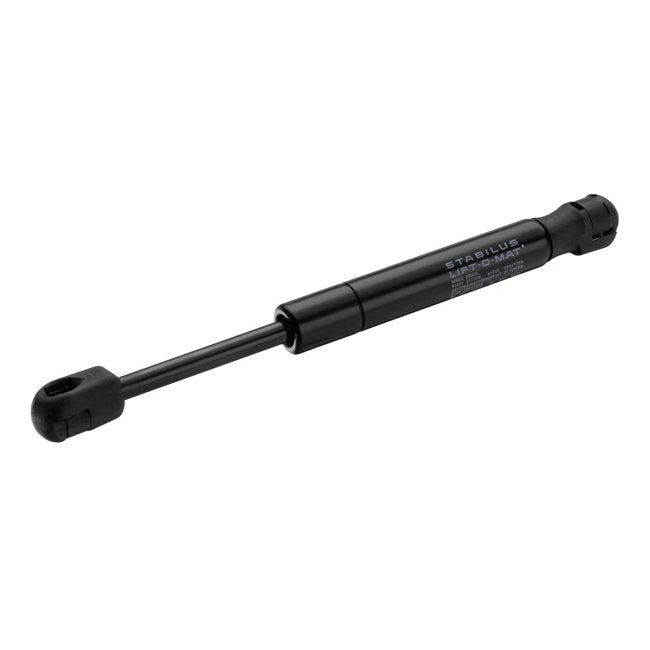

Non-Locking Gas Springs - Lift-O-Mat Series
Non-Locking Gas Springs - Lift-O-Mat Series
SKU:GAS-6a5f74
Achieve precise controlled motion with our Non-Locking Gas Springs. Durable, cost-effective, and versatile for various applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Non-Locking Gas Springs - Lift-O-Mat Series
$89.99
Quantity: 1
Claim Your Seller Account
Non-Locking Gas Springs - Lift-O-Mat Series
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance lifting and lowering operations with precision using our Non-Locking Gas Springs from the Lift-O-Mat series. Engineered for controlled motion, our gas springs are maintenance-free, cost-effective, and available in a wide range of sizes and forces. With extended lengths from 7.68" to 34.84" and output forces ranging from 50 to 1150 Newtons, these gas springs are versatile solutions for doors, lids, hatches, and various furniture applications. Crafted from durable low carbon or stainless steel, most parts are made in the Americas, ensuring quality and reliability. Ideal for the medical, transportation, and machine construction industries.
Product Specifications
Specifications Compressed Length Mm
285
Specifications Compressed Length Mm Range
251-300
Specifications End Fitting
Composite Ball and Socket
Specifications Extended Length Mm
485
Specifications Extended Length Mm Range
451-500
Specifications Notes
Lift-O-Mat gas springs are ideal in applications that require lifting, lowering, moving, supporting, and adjusting. The combination of weight compensation and force support offer the perfect solution for lids, hatches, and doors. | We provide design assistance using our simulation program to help you design the right gas spring for your application. We can offer guidance in all areas, from improvements of existing products to completely new product development. Mounting points and h
Specifications Optional Accessories
Ball Studs, Brackets
Specifications Output Force Newtons
200
Specifications Output Force Newtons Range
151-200
Specifications Product Guides
Gas Spring's Guides
Specifications Rod Diameter Mm
10
Specifications Rod Finish
NiSlide
Specifications Travelstroke Mm
200
Specifications Travelstroke Range
176-200
Specifications Tube Diameter Mm
22
Specifications Tube Finish
Black Powder Coat
