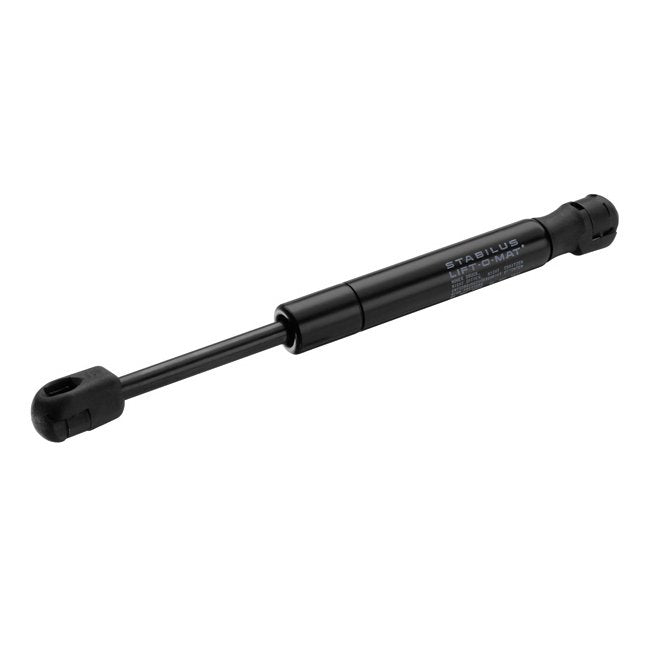

Non-Locking Lift-O-Mat Gas Springs
Non-Locking Lift-O-Mat Gas Springs
SKU:GAS-1b8e05
Versatile Non-Locking Gas Springs for controlled motion in various applications. Maintenance-free and durable design.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Non-Locking Lift-O-Mat Gas Springs
$69.99
Quantity: 1
Claim Your Seller Account
Non-Locking Lift-O-Mat Gas Springs
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance lifting and lowering capabilities with the Non-Locking Lift-O-Mat gas springs. These maintenance-free gas springs, available in various sizes and forces, provide controlled motion for applications requiring precise weight compensation and force support. With extended lengths ranging from 7.68" to 34.84" and forces from 50 to 1150 Newtons, these versatile gas springs are crafted from low carbon or stainless steel components, ensuring durability and reliability. Ideal for doors, lids, hatches, and furniture in medical, transportation, and machine construction industries.
Product Specifications
Specifications Compressed Length Mm
245
Specifications Compressed Length Mm Range
201-250
Specifications End Fitting
Composite Ball and Socket
Specifications Extended Length Mm
405
Specifications Extended Length Mm Range
401-450
Specifications Notes
Lift-O-Mat gas springs are ideal in applications that require lifting, lowering, moving, supporting, and adjusting. The combination of weight compensation and force support offer the perfect solution for lids, hatches, and doors. | We provide design assistance using our simulation program to help you design the right gas spring for your application. We can offer guidance in all areas, from improvements of existing products to completely new product development. Mounting points and h
Specifications Optional Accessories
Ball Studs, Brackets
Specifications Output Force Newtons
100
Specifications Output Force Newtons Range
50-100
Specifications Product Guides
Gas Spring's Guides
Specifications Rod Diameter Mm
8
Specifications Rod Finish
NiSlide
Specifications Travelstroke Mm
160
Specifications Travelstroke Range
151-175
Specifications Tube Diameter Mm
18
Specifications Tube Finish
Black Powder Coat
